Image Sensor 4k High-resolution, Low-light Sensor for VOXL® (Starvis IMX412 w/ M12-style Lens) (MDK-M0061)
Low-light Camera Module for VOXL®
Have you seen our new, smaller, lighter and cheaper version? Check out MSU-M0107
Plugs directly into VOXL®! A 4k High-resolution Camera based on the Sony Starvis IMX412 sensor. Enable video recording at 1080p30 or 4k30 using this image sensor module. NDAA '20 Section 848 compliant.
IMX412-AACK is a (Type 1/2.3") 12.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. R, G and B pigment primary color mosaic filter is employed. It equips an electronic shutter with variable integration time.
|Lens||Field of View (HxVxD)||Focal Length||IR Filter|
|SL-HD3125BMP||120° x 89° x 151°||3.1mm||No|
This product has a removable and swappable lens. Note: there can be a small touch of glue to hold the focus in place, but you can break that seal to replace the lens.

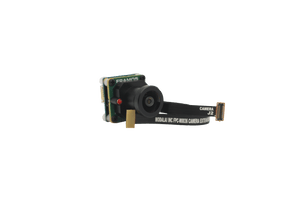

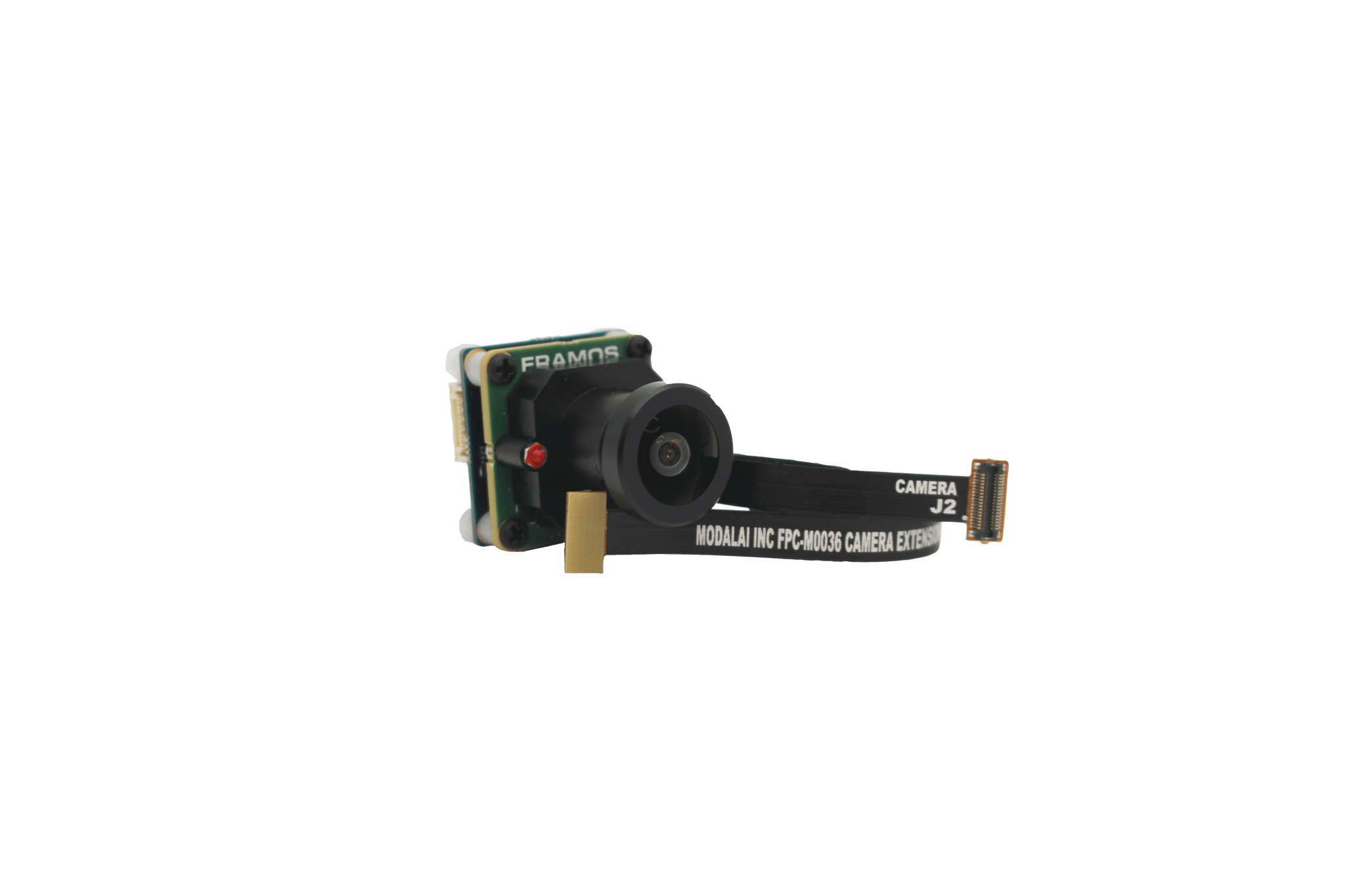

Included in this Kit
The following components are integrated and tested with a VOXL prior to shipment
- m12-style lens
- ModalAI Framos Flexible Interposer for VOXL (M0061)
- MIPI Extension Cable (MFPC-M0036-1) to connect directly to VOXL
|Qualcomm Flight RB5 5G||❌|
ModalAI Part Numbers
|MDK-M0061-1-06||Sony Starvis IMX412 Framos Module w/ M12 Lens SL-HD3125BMP (M10000513 No IR-cut Filter)|
|MDK-M0061-1-07||Sony Starvis IMX412 Framos Module w/ M12 Lens SL-HD3125BMP (M10000580 with IR-cut Filter)|
