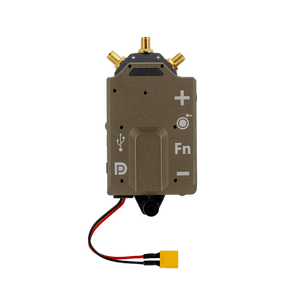

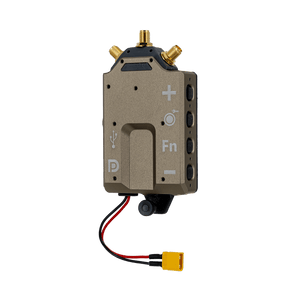

MVX VRX Ground Unit
Product Description

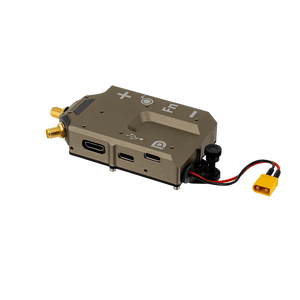

The ModalAI VRX is a digital, encrypted FPV video receiver for ModalAI VTX-equipped systems. It delivers under 35 ms glass-to-glass latency on low-latency settings and 45 ms typical, with DisplayPort-over-USB-C output, and supports real-time switching between EO and IR streams from the aircraft. A single VRX interfaces with one UAS, and multiple VRX units can view the same aircraft simultaneously.
The VRX is U.S.-made on ModalAI hardware, uses 256-bit encrypted digital video, and is on the Blue UAS Framework list.
The VRX is part of ModalAI’s FPV video transmission system. For the full picture of what goes into an American-made FPV build, see FPV drone components.
Product Specifications
| Feature | Details |
|---|---|
| Range | 10 km+ line-of-sight, 5 GHz or 2.4 GHz |
| Video Performance | 1280x720 @ 60 fps — under 35 ms glass-to-glass with low-latency settings, 45 ms typical |
| Frequencies | 2.412-2.484 GHz or 5.160-5.885 GHz, dual band |
| Video Output | DisplayPort over USB-C |
| Compute | ModalAI M0205-1 — VOXL 2 Mini VRX, running full Linux (kernel 5.4) with developer access |
| Antennas | 3x SMA mounts (RHCP used aircraft side) |
| Power | 2S-6S, XT30 connector, ~7 W |
| Weight | 120 g without battery |
| Size | 4" x 2" x 1" |
| Encryption | 256-bit encrypted digital video |
| Country of Origin | USA |
Software Features
- Supported in VOXL VRX SDK 1.4.5 and later
- Real-time switching between EO and IR streams from the aircraft
- Multi-stream support: select a stream from a multi-UAS configuration, or view a single UAS from multiple VRX units
- Full Linux with developer access, like VOXL 2 Mini
Supported VTX Air Units
- Stinger Vision FPV — MRB-D0013-6-C33-M26-T8-X8
- MVX VTX Air Unit — MVX-T0001-6
Technical Details
What's Included
| MPN | Description | Contents |
|---|---|---|
| MVX-R0001-7-V1-M31-K0 | VRX Only, Video Receiver with DisplayPort Output | (1) VRX ground unit |

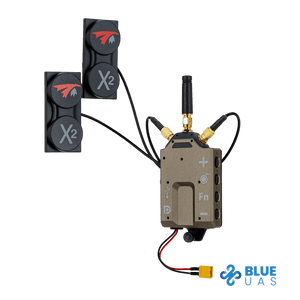

| MVX-R0001-7-V1-M31-K1 | VRX with DisplayPort to HDMI Adapter, Battery, Antennas | (1) VRX ground unit (1) DisplayPort to HDMI adapter Battery RA01 antenna set: 2x 5 GHz patch directional, 1x omni whip |

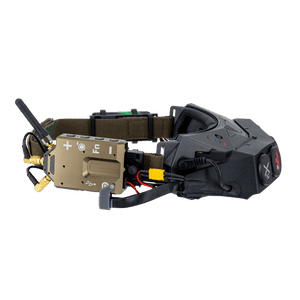

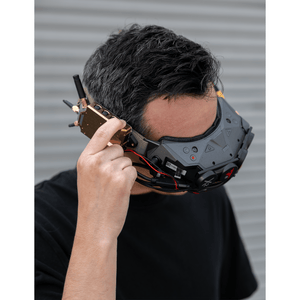

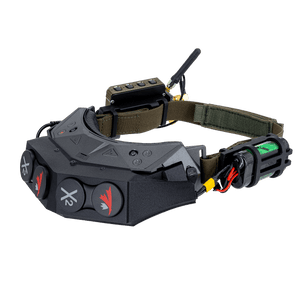

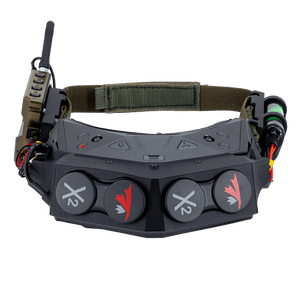

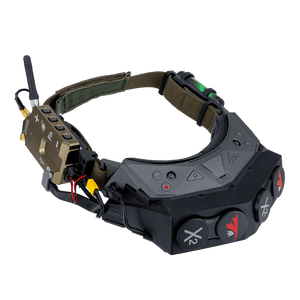

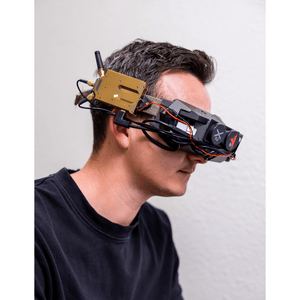

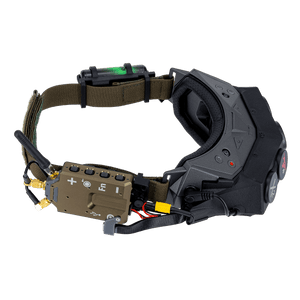

| MVX-R0001-7-V1-M31-K2 | VRX Integrated with Goggles, Antennas, Battery | (1) VRX ground unit integrated with Orqa FPV.One goggles Battery RA01 antenna set |
RA01 Antenna Set
- M10001129 — X2-AIR 5.8 MKII, RHCP, RG316, SMA, 300 mm
- M10001130 — X2-AIR 5.8 MKII, RHCP, RG316, SMA, 400 mm
- M10001136 — 4.9-5.9 GHz, 5 dBi, linear whip, SMA, 44 mm
Additional Items Not Included
- FPV goggles or display with HDMI or DisplayPort input (K0 and K1 kits)
- A ModalAI VTX-equipped aircraft
Compatible Products
| Product | Compatible? |
|---|---|
| Stinger Vision FPV | ✅ |
| MVX VTX Air Unit | ✅ |
| VOXL 2 | ✅ with an MVX VTX installed |
| VOXL 2 Mini | ✅ with an MVX VTX installed |
| Starling 2 and Starling 2 Max | Planned |
| VOXL Flight | ❌ |
| Qualcomm Flight RB5 5G | ❌ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8517.62.90 |
| Country of Origin | USA |
| Radio Frequencies Used | 2.412-2.484 GHz or 5.160-5.885 GHz, 1280x720 @ 60 fps — receive only |
| RoHS Compliant | Yes |
