VOXL 2 WiFi Add-On Kit
$99.99
| /
description
VOXL 2 Wi-Fi Add-On Kit - NDAA compliant 2.4/5ghz WiFi to your VOXL 2
This development kit comes with everything you need to enable WiFi connectivity on VOXL 2. Including an NDAA compliant WiFi dongle, this kit is a must have for developers looking to enable a remote WiFi connection with a VOXL 2 autopilot.
Product Specifications:

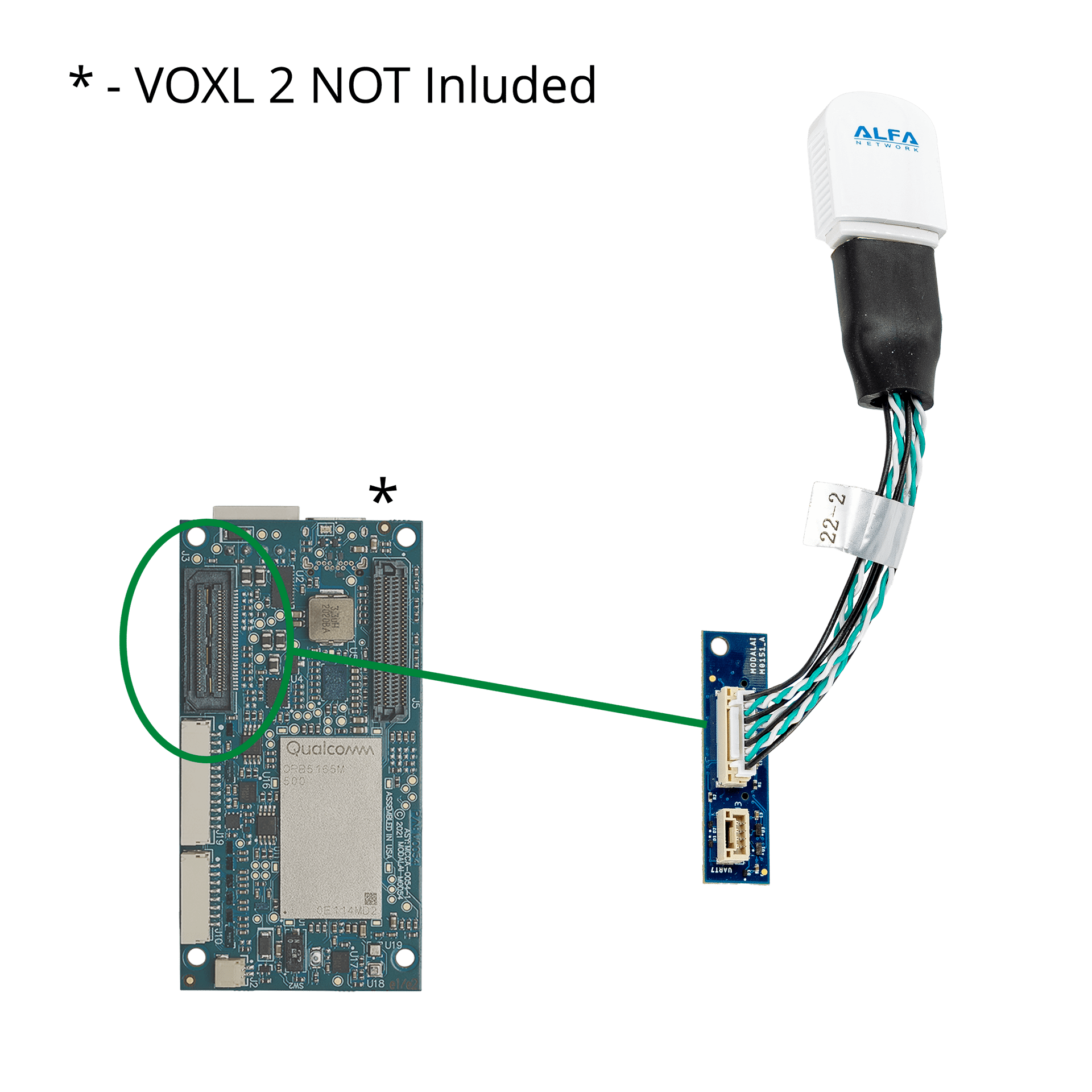

- Add-on board interfaces with VOXL 2 via a board to board connector
- Includes Alfa Network AWUS036EACS 802.11ac AC600 WiFi Wireless Network Adapter
- Includes USB cable to connect WiFi dongle to Add-on board
Software Features:
- Works with voxl-modem
Technical Details

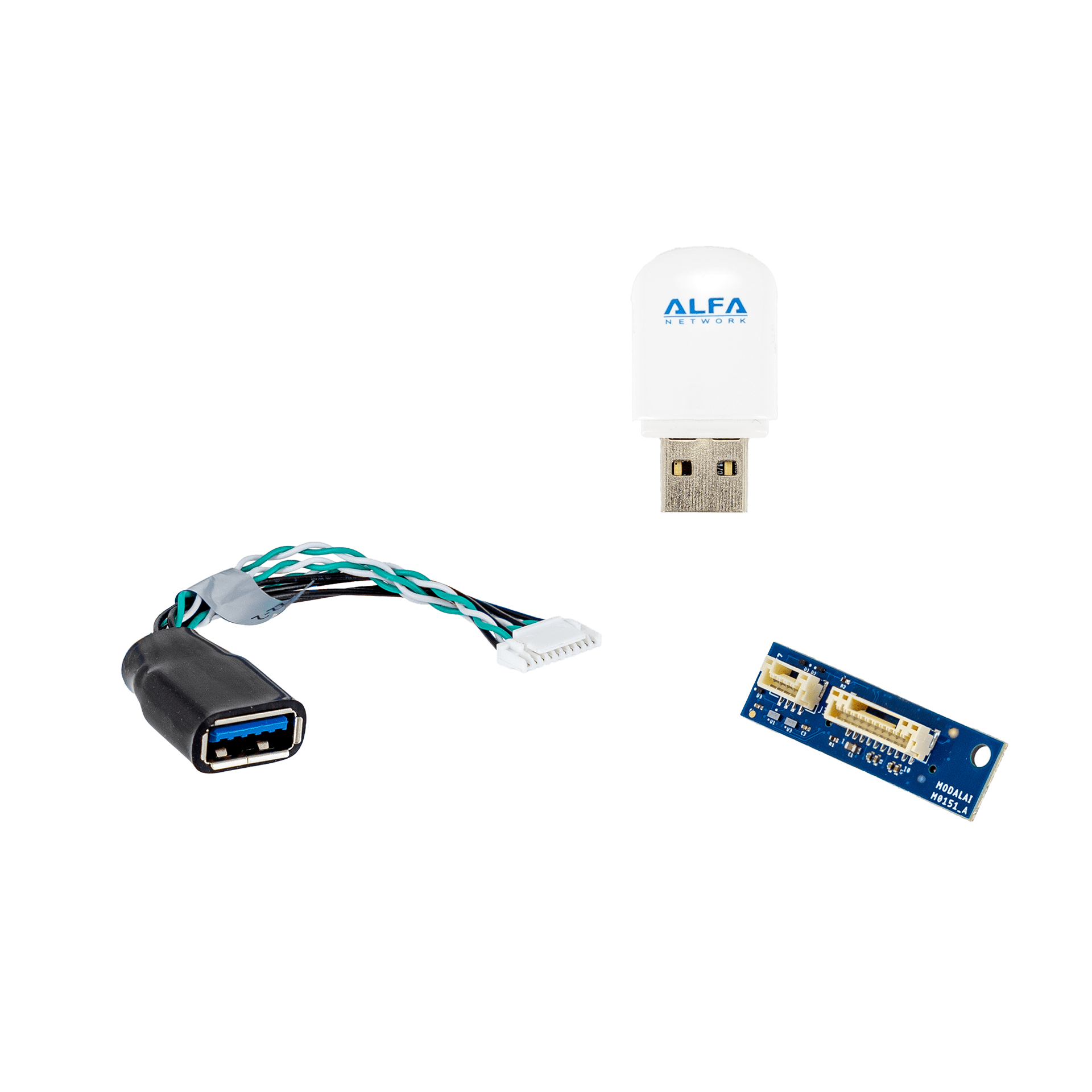

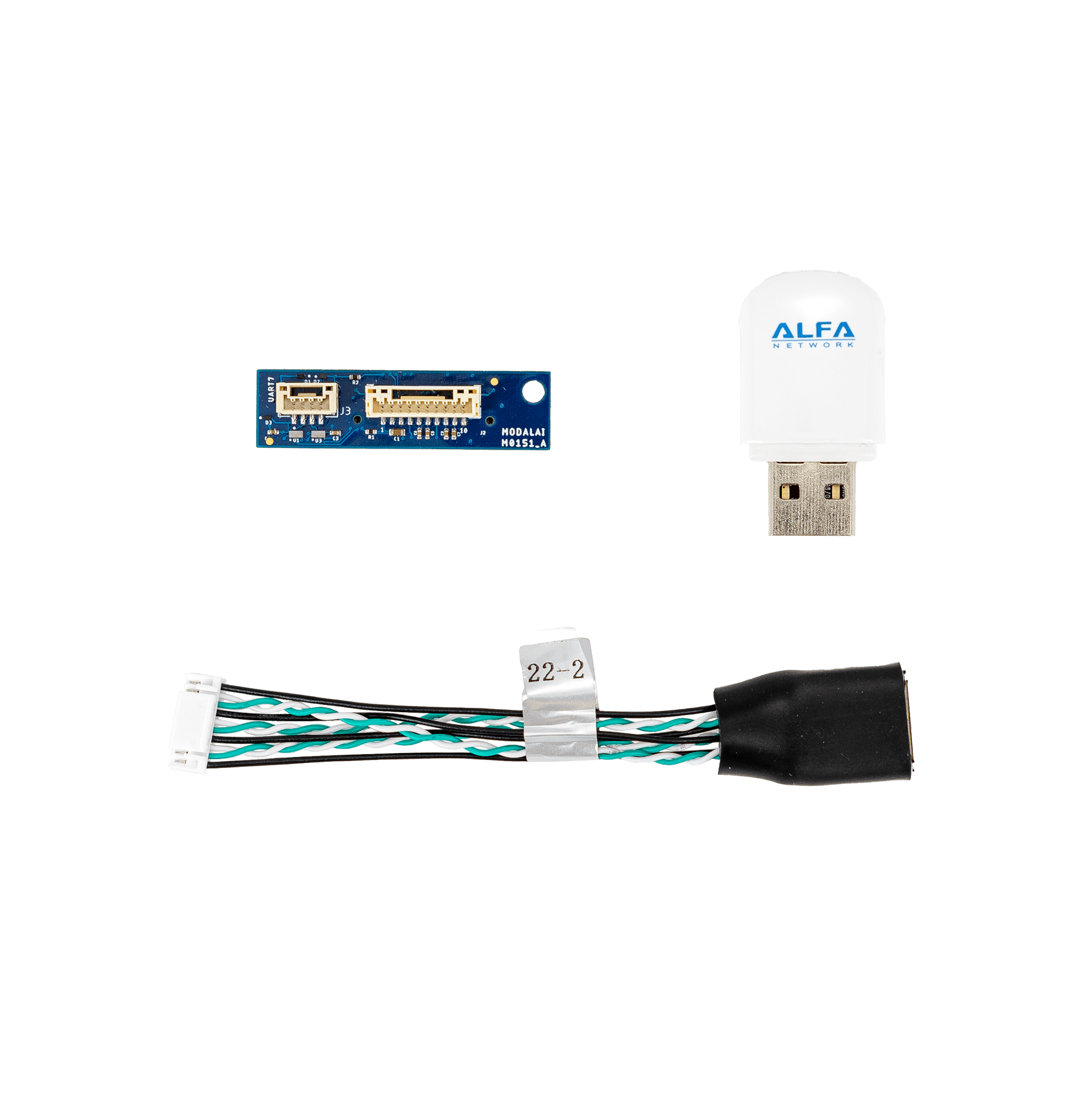

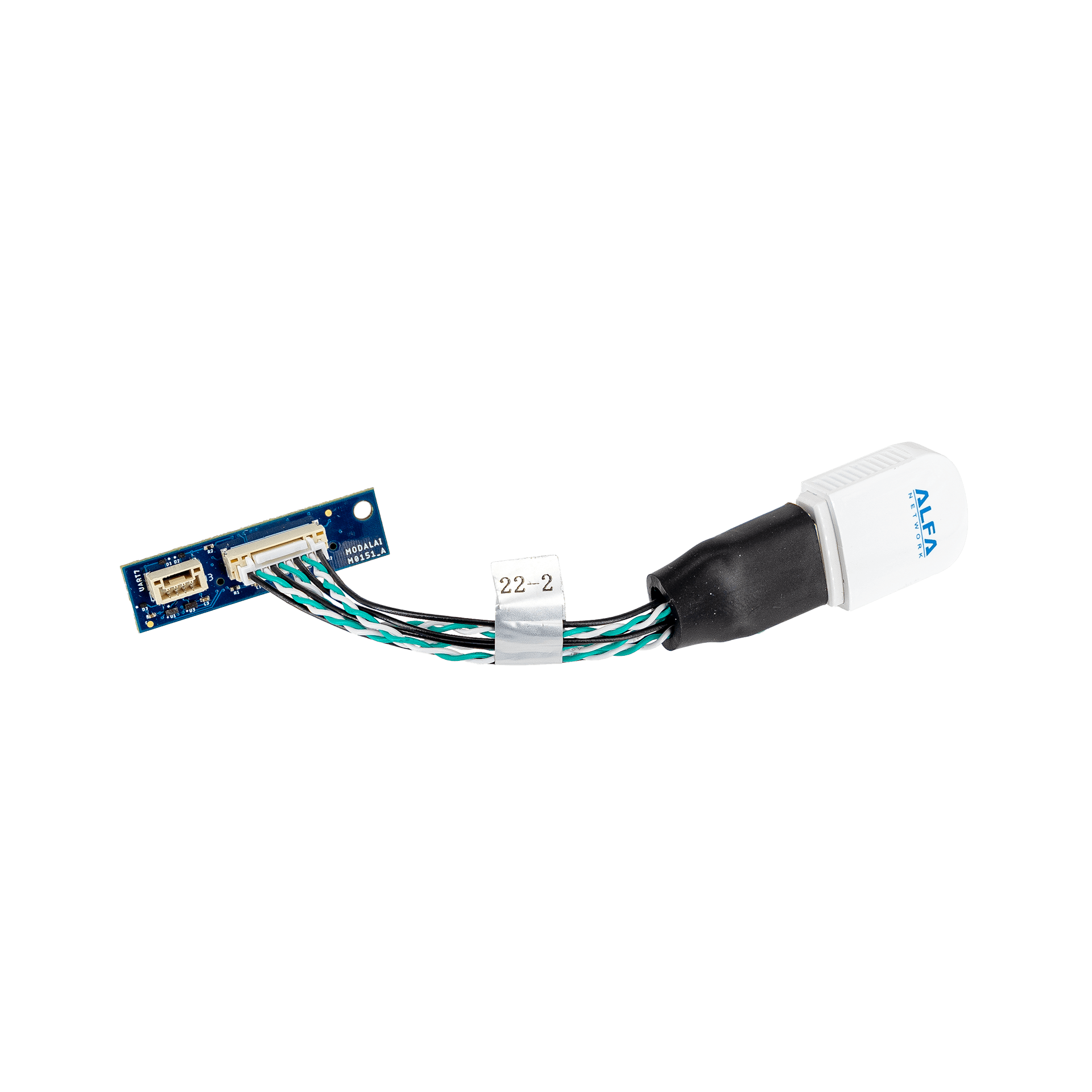

What's Included
UART Expansion Board, WiFi Dongle and JST to USB3 Cable
- (1) MCCA-M0151-1-00: VOXL / VOXL 2 USB 3.0 Expansion Board
-
(1) M10000570: Alfa Network AWUS036EACS 802.11ac AC600 Wi-Fi Wireless Network Adapter, Small
- (1) MCBL-00022-2: 10-pin JST to USB3 Type A Female Cable (70 mm)
- (1) MHW-M0030-1: VOXL Modem Add On Hardware Kit
Compatible Products
| Product | Compatible? |
| VOXL | ❌ |
| VOXL Flight | ❌ |
| VOXL 2 | ✅ |
|
Qualcomm Flight RB5 5G |
❌ |
| Sentinel | ✅ |
| VOXL 2 Flight Deck | ✅ |
ModalAI Part Numbers
| MPN | Description |
|
MDK-M0151-1-02 |
Dev Kit, VOXL 2 WiFi Add-On Kit |
