VOXL 2 MIPI Boson+ Adapters for Thermal IR FPV
$399.99
| /
+
Hardware Lifecycle
↪ Production (Definition)
description
MDK-M0201 VOXL 2 MIPI Boson+ Adapter for Thermal IR FPV
Product Description
Brings thermal vision to a VOXL 2 aircraft, pairing the FLIR Boson+ 640 with the VOXL SDK for thermal FPV flight.
Product Specifications
| Feature | Details |
|---|---|
| Thermal Output | 640 x 512 thermal image data at 30 fps with the Boson+ 640 |
| Interface | MIPI coax via the MCCA-M0201-1 adapter |
| Software | Supported by voxl-camera-server in the VOXL SDK |
Technical Details

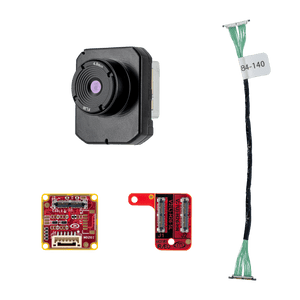

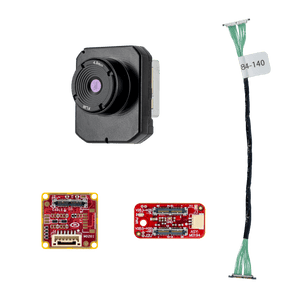

What's Included
| MPN | Description |
|---|---|
| MDK-M0201-1-140 | Kit, no Boson included |
| MCCA-M0201-1 | Boson+ MIPI Coax Adapter |
| MCCA-M0181-1 | VOXL 2 to Boson Coax Adapter |
| MCBL-00084-140 | Cable, high-speed camera coax, 26-pin, 140 mm |
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL 2 | ✅ |
| FLIR Boson+ 640 | ✅ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31 — the -140-640-95 variant is declared 9013.80 |
| Country of Origin | USA |
| Radio Frequencies Used | None — thermal imaging, no RF emission |
| RoHS Compliant | Yes |
