Cable Power Module for Companion Computer, Flight Controller and ESCs (Drones and Robots) (MDK-M0041)
$79.99
| /
description
MDK-M0041 Power Module for Companion Computers and ESCs
Product Description

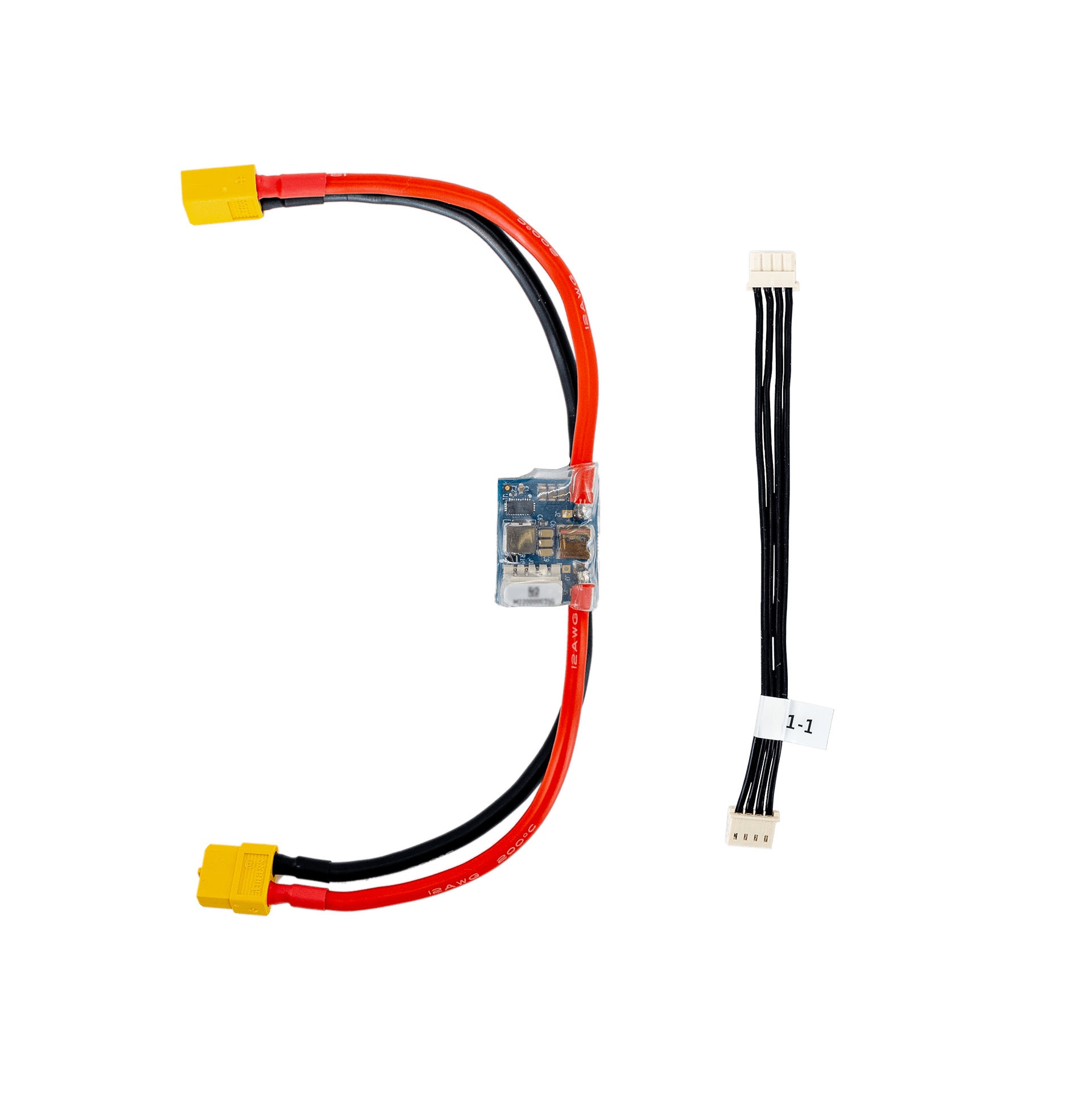

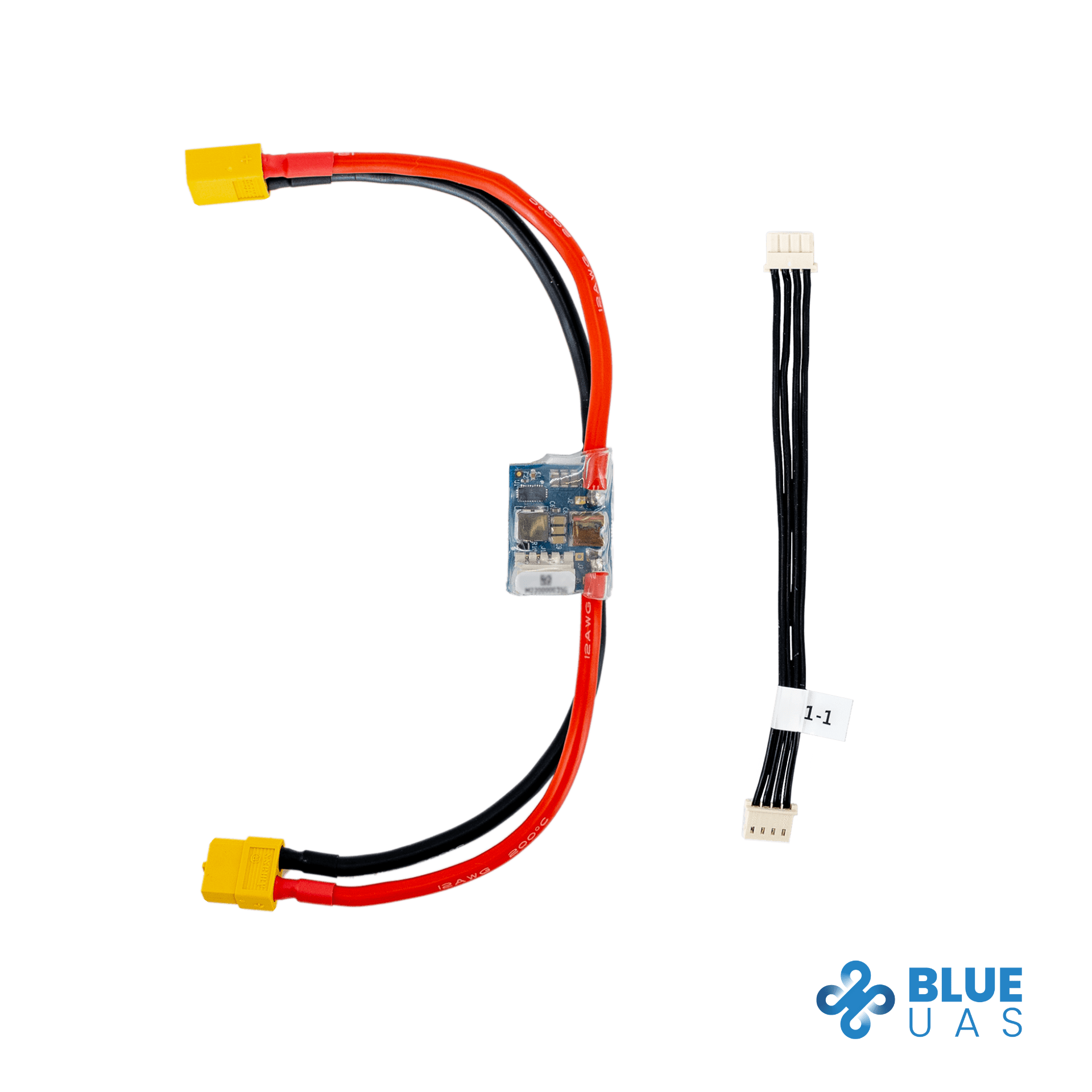

A 2S-6S, PX4-ready power module with an XT60 connector, supplying a companion computer, flight controller and ESCs from one battery input, with ESC pass-through. Part of the Blue UAS Framework list.

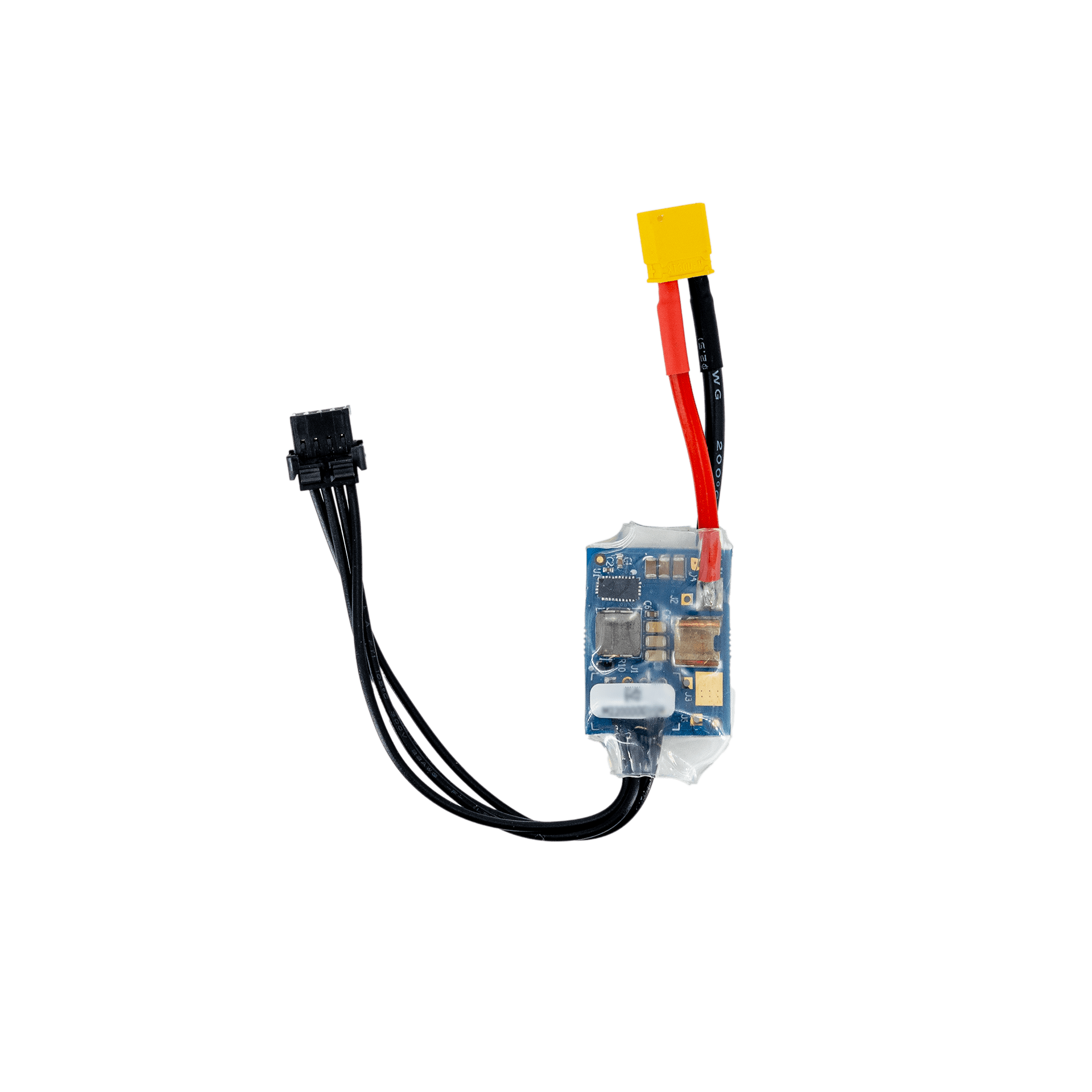

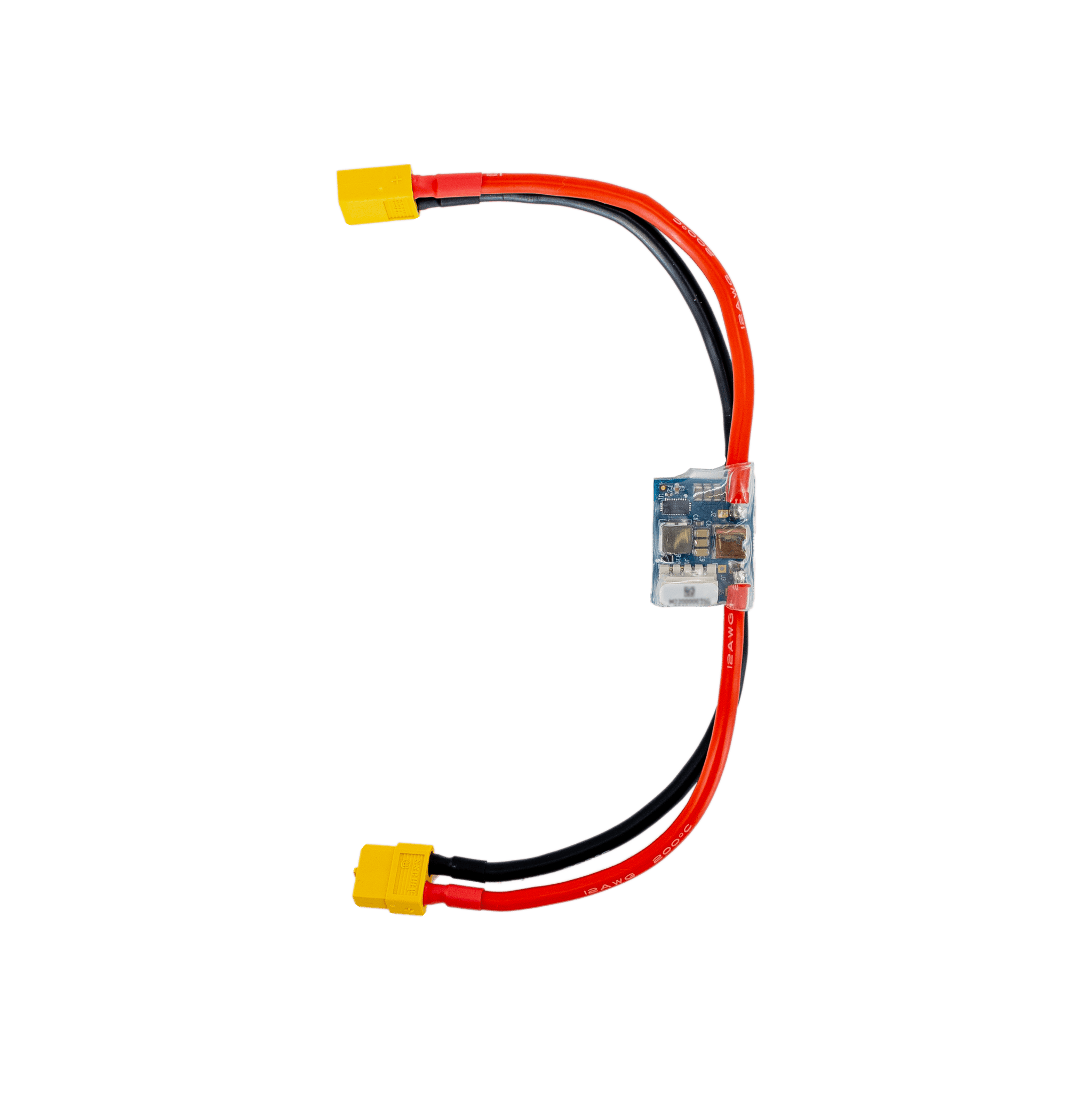

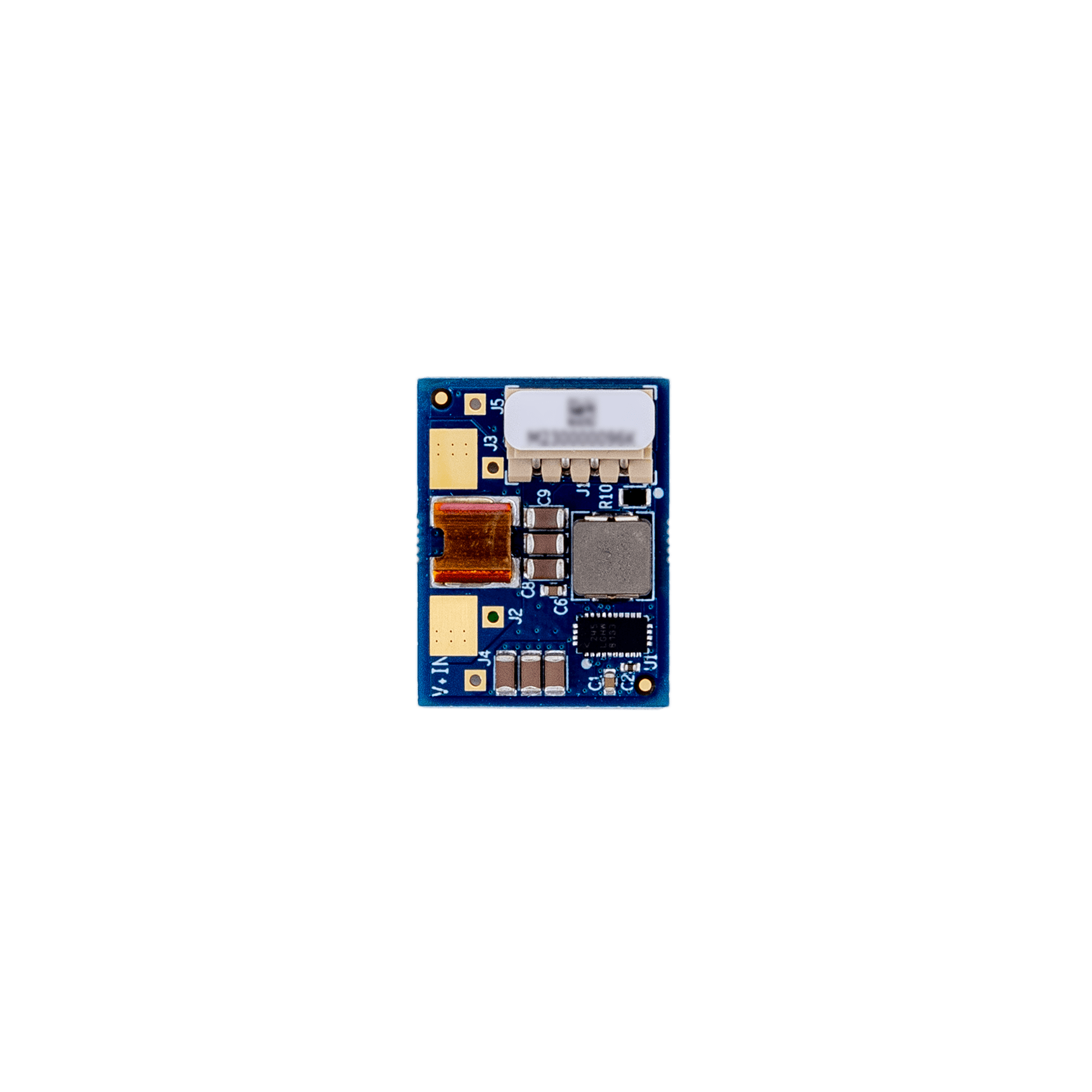

Some boards are green; the shipped product has heat shrink already assembled, unlike some product photography.
Product Specifications
| Feature | Details |
|---|---|
| Input | 2S-6S battery via XT60 |
| Output | Up to 6.0 A DC at 5 V |
| Monitoring | PX4 current and voltage monitoring driver, PX4 v1.11 or ModalAI v1.10 and later |
| Pass-through | ESC power pass-through |
| Assembly | Ships with heat shrink already fitted |
Technical Details
What's Included
| MPN | Description |
|---|---|

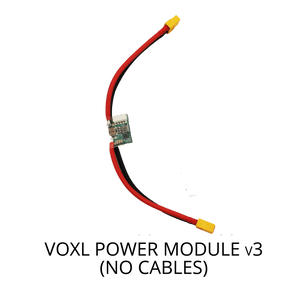

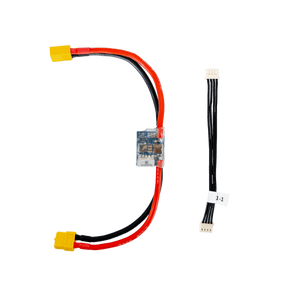

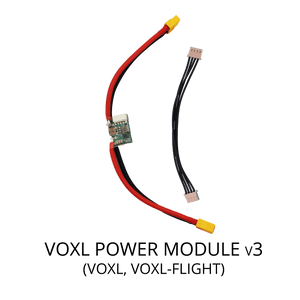

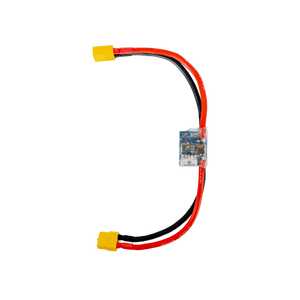

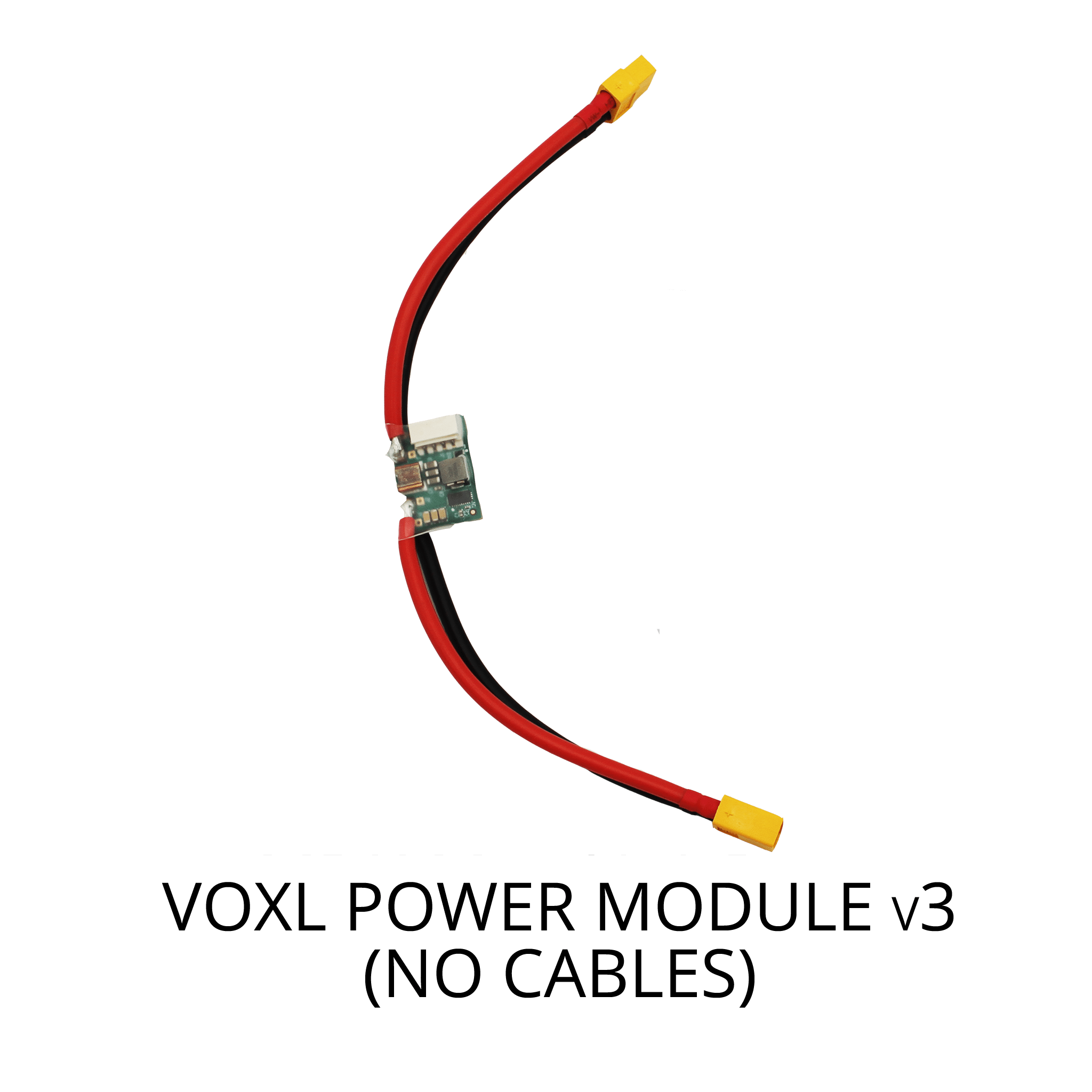

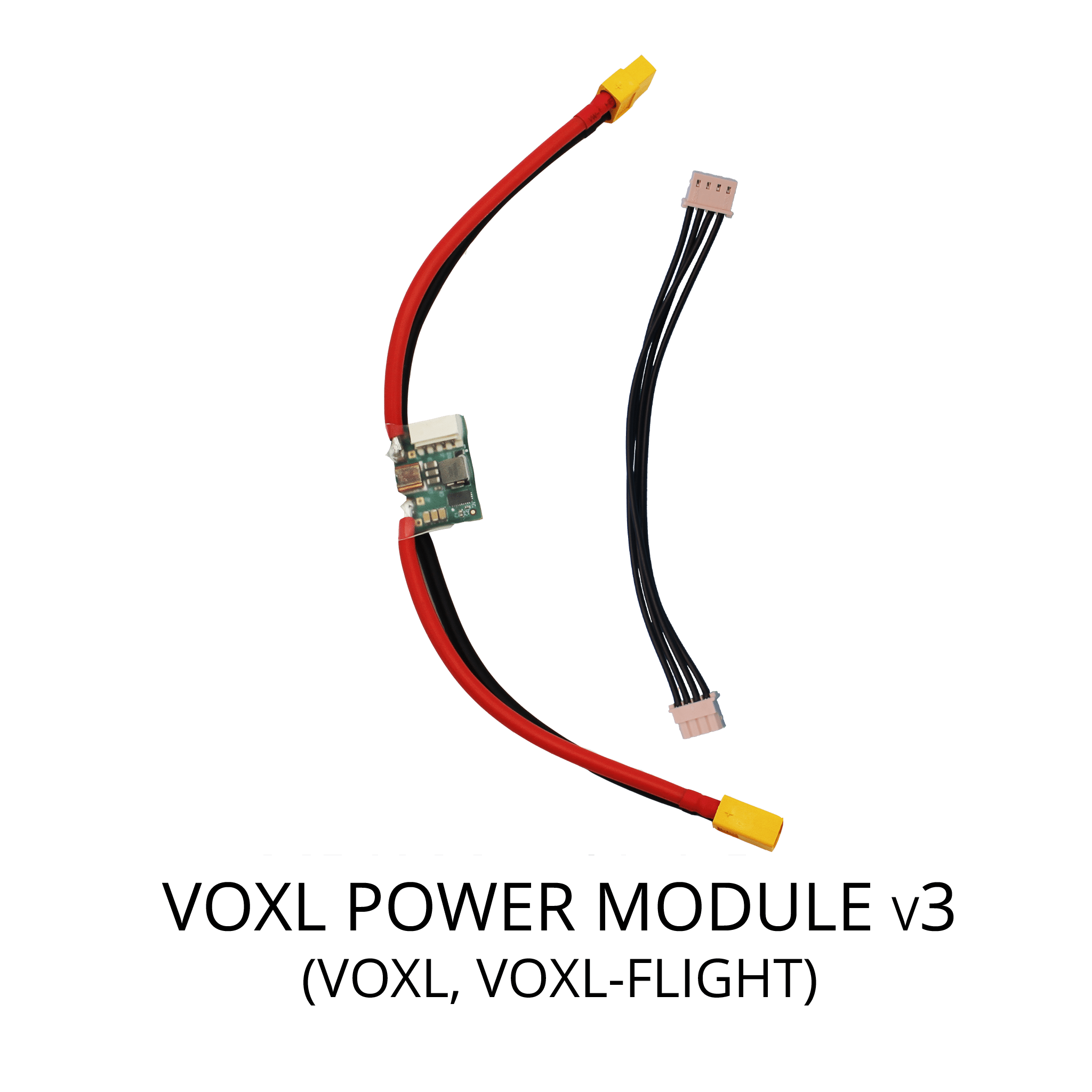

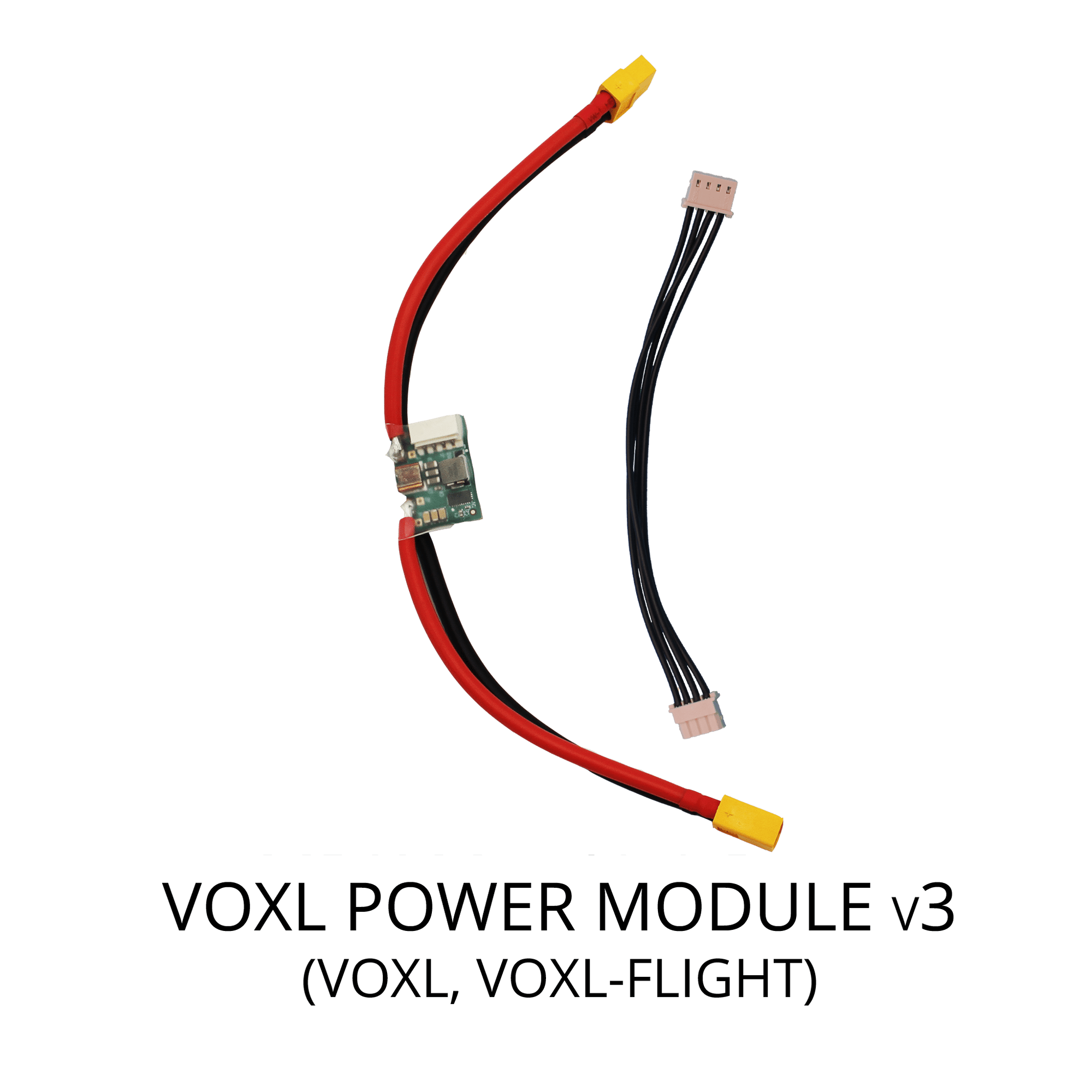

| MDK-M0041-1-01 | Power Module kit |

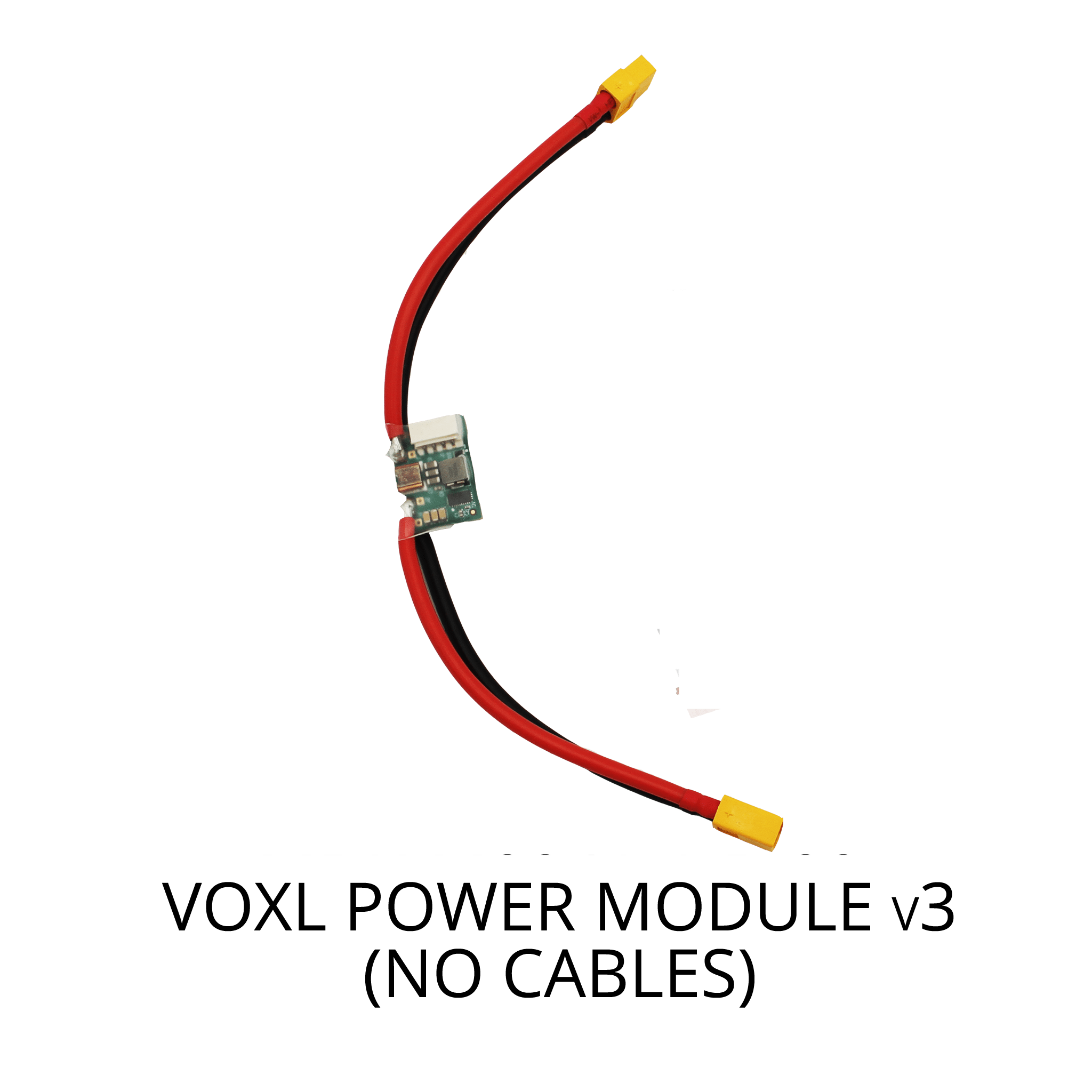

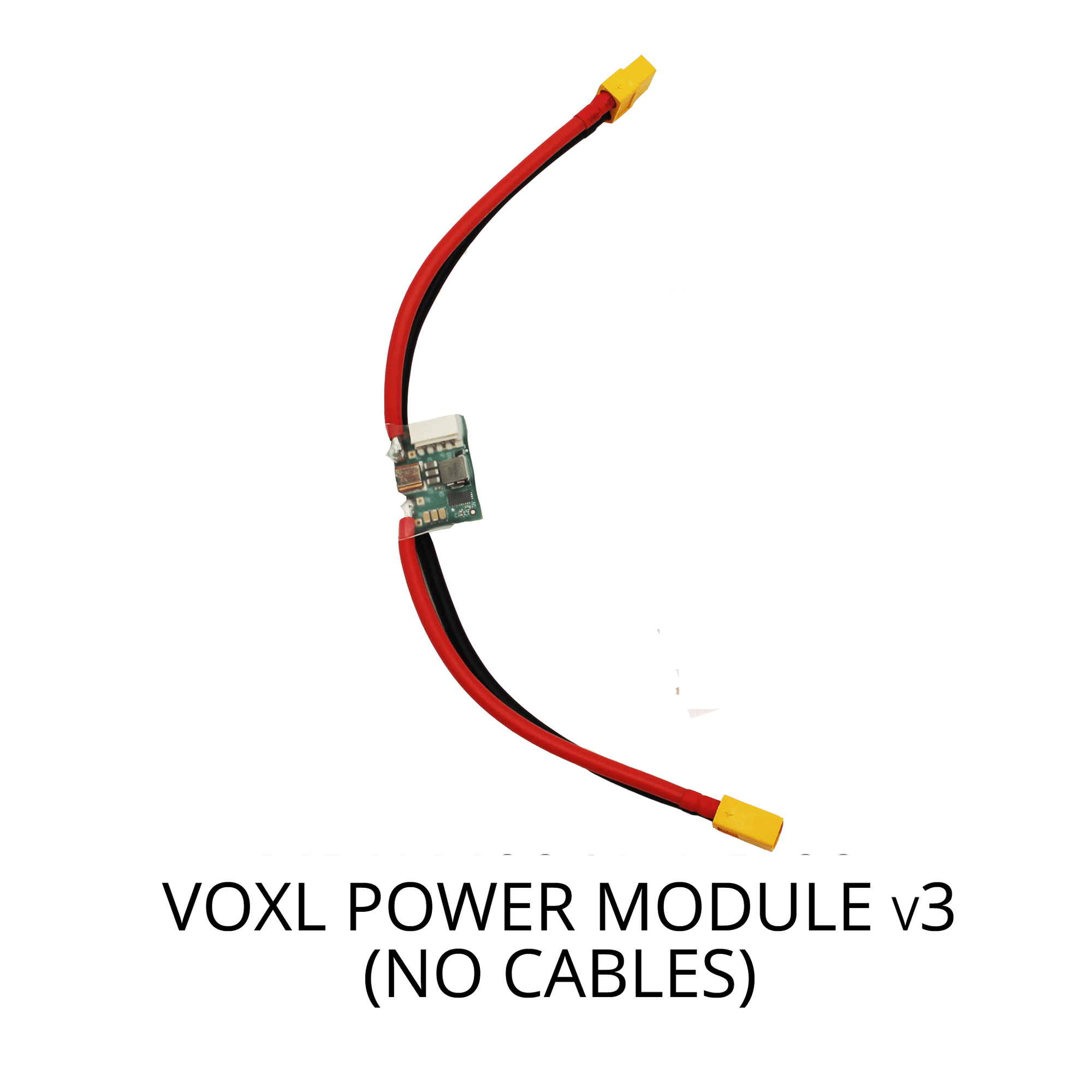

| MDK-M0041-1-00 | Power Module |
| MDK-M0041-1-03 | Power Module variant |
| MDK-M0041-4-00 | Power Module variant |
| MDK-M0041-5-00 | Power Module variant |
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL 2 | ✅ |
| VOXL Flight | ✅ |
| VOXL | ✅ |
| Flight Core | ✅ |
| Flight Core v2 | ✅ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0000 |
| Country of Origin | USA |
| Radio Frequencies Used | None — power conversion only |
| RoHS Compliant | Yes |
