Seeker Micro-Development Drone

$2,999.00

Seeker Micro-Development Drone

$2,999.00
description

The world's first micro-development drone with SWAP-optimized sensors and payloads optimized for indoor and outdoor navigation

Software Features

  • Powered by VOXL companion computer
  • Integrated Qualcomm Snapdragon 821 premium tier chipset onboard: 4 cores up to 2.4 GHz, 14nm, 4GB LPDDR4 PoP 1866MHz
  • VOXL 4-in-1 ESC
  • Open source software: Open CV, ROS, Docker, PX4
  • Optional 4G for cellular carrier based networks

Powered by VOXL CAM Perception Engine

Designed to Navigate Small Spaces

The Seeker is 550g and boasts up to ~27 minutes of flight time. The carbon air frame, self-contained VOXL CAM, and tilted rotors make it perfect to navigate through tunnels, scaffolding, bridges, and more.

  • 550g
  • 270mm diagonal

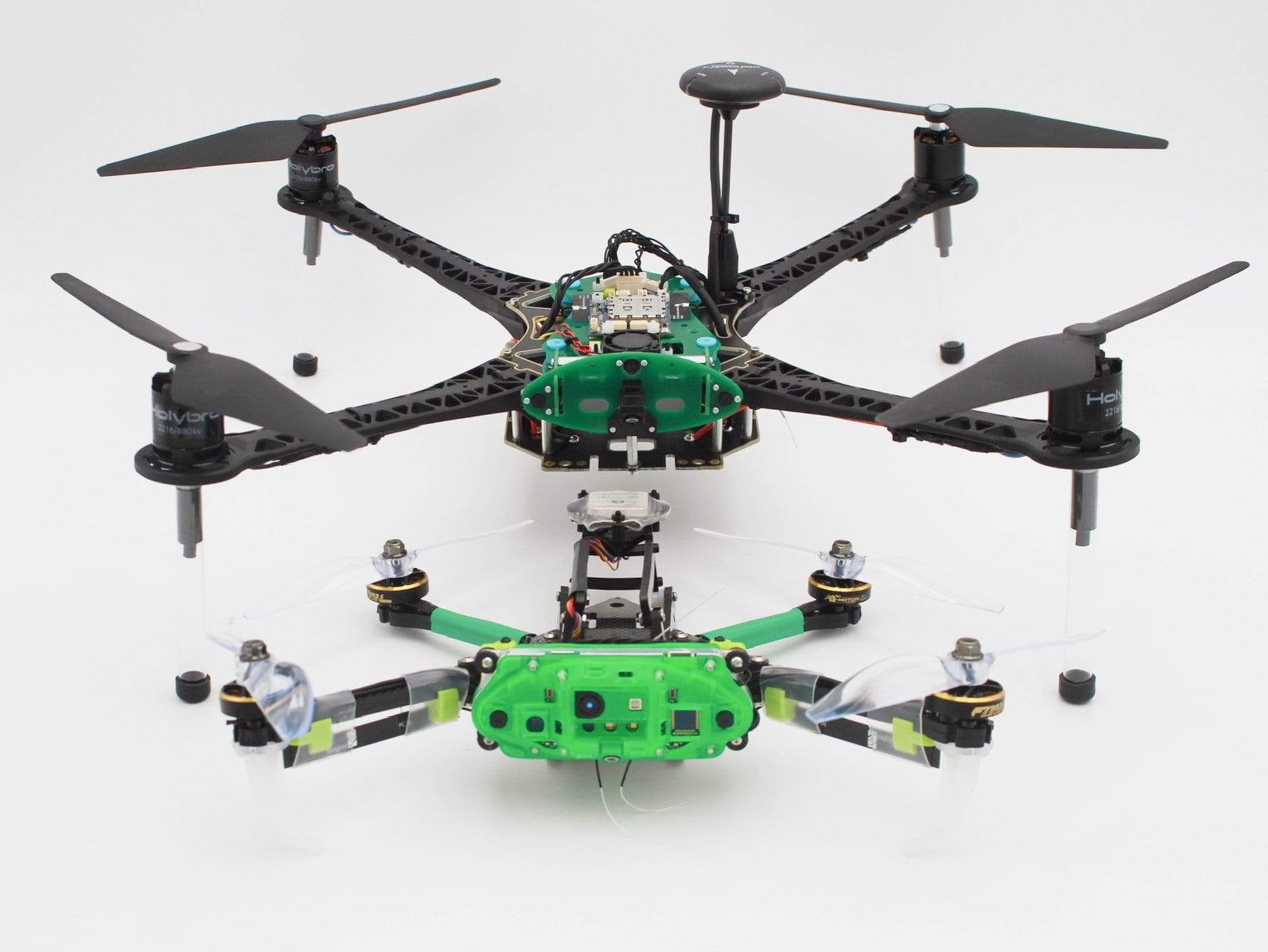

ModalAI VOXL m500 side by side with the Seeker

Technical Documentation

Product Brief

Block Diagram

Datasheet

What's Included

  • MRB-D0003-1 Seeker Drone (multiple configurations listed below)
  • MRP-D0003-1-00 Propellers
  • MRP-D0003-2-00 Landing Gear

Seeker Configurations

Choose the right configuration for your perception needs:

Seeker Development Drone

  • Weight: ~550g w/ Battery
  • Perfect for outdoor autonomous flight
  • Includes VOXL CAM Core w/ Flight Controller
  • Integrated ModalAI Flight Core for PX4
  • ModalAI 4 in 1 ESC
  • ModalAI APM (Advanced Power Module)
MCM-C0001-1-V1-C3-FC1-K0
VOXL CAM Core w/ Flight Controller
Web Link
MDK-M0049-1-01

VOXL ESC

Web Link

MDK-M0048-1-B-01
APMv3
Web Link


Seeker Development Drone + TOF

  • Weight: ~550g w/ Battery
  • Perfect for indoor and outdoor autonomous flight
  • Includes VOXL CAM + TOF w/ Flight Controller
  • Integrated ModalAI Flight Core for PX4
  • ModalAI 4 in 1 ESC
  • ModalAI APM (Advanced Power Module)
MCM-C0001-1-V1-C7-FC1-K0
VOXL CAM + TOF w/ Flight Controller
Web Link
MDK-M0049-1-01

VOXL ESC

Web Link

MDK-M0048-1-B-01
APMv3
Web Link

Seeker Development Drone w/ 4G LTE

  • Weight: ~550g w/ Battery
  • Perfect for outdoor autonomous flight
  • Includes VOXL CAM Core w/ Flight Controller and 4G Modem
  • Integrated ModalAI Flight Core for PX4
  • ModalAI 4 in 1 ESC
  • ModalAI APM (Advanced Power Module)
  • Integrated 4G LTE Modem with Antennas
  • Options for North America and Europe

MCM-C0001-1-V1-C3-FC1-M8-K0(North America)

VOXL CAM Core w/ Flight Controller and 4G Modem (North America)
Web Link

MCM-C0001-1-V1-C3-FC1-M5-K0 (Europe)

VOXL CAM Core w/ Flight Controller and 4G Modem (Europe)
Web Link
MDK-M0049-1-01

VOXL ESC

Web Link

MDK-M0048-1-B-01
APMv3
Web Link



Seeker Development Drone + TOF w/ 4G LTE

  • Weight: ~550g w/ Battery
  • Perfect for indoor and outdoor autonomous flight
  • Includes VOXL CAM Core w/ Flight Controller and 4G Modem
  • Integrated ModalAI Flight Core for PX4
  • ModalAI 4 in 1 ESC
  • ModalAI APM (Advanced Power Module)
  • Integrated 4G LTE Modem with Antennas
  • Options for North America and Europe

MCM-C0001-1-V1-C7-FC1-M8-K0(North America)

VOXL CAM Core w/ Flight Controller and 4G Modem (North America)
Web Link

MCM-C0001-1-V1-C7-FC1-M5-K0 (Europe)

VOXL CAM Core w/ Flight Controller and 4G Modem (Europe)
Web Link
MDK-M0049-1-01

VOXL ESC

Web Link

MDK-M0048-1-B-01
APMv3
Web Link..


Additional Components

Required components sold separately:
