Starling 2 Max Replacement Parts
$4.99
| /
description

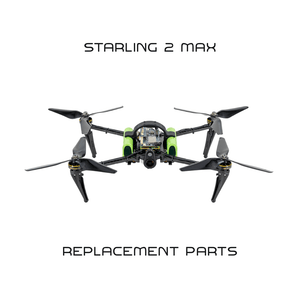

Starling 2 Max Replacement Parts
Product Description
Replacement parts for the Starling 2 Max (D0012) development drone. Select the part you need from the drop-down menu. Each order ships the selected part only.
The Replacement Plastics Kit contains all of the plastic parts on the Starling 2 Max. The Image Sensor Upgrade Kit contains the parts needed to convert a C28 to a C29, adding the ToF module and plastics.
Product Specifications
There are two different sets of carbon fiber frames and they are not interchangeable. Match the frame to your airframe revision and motors.
| Frame | Motor mount spacing | Use with | Airframe SKU |
|---|---|---|---|
| M10001459 | Wider | Updated (V4) motor selection | D0012-4-V4-CXX-MXX-TX |
| M10000929 | Smaller | Black & gold motors | D0012-4-V3-CXX-MXX-TX |
| M10000868 (limited stock) | Smaller | Black & gold motors only | D0012-4-V3-CXX-MXX-TX |
| Motor | Size | kV | Fits |
|---|---|---|---|
| M10000073 | 2203.5 | 1500 kV | V3 frames |
| M10001367 | 2204 | 1500 kV | V4 frames |
Technical Details
User Guide (Hardware Overview)
What's Included
One of the following, according to the option selected:
| Part | MPN |
|---|---|

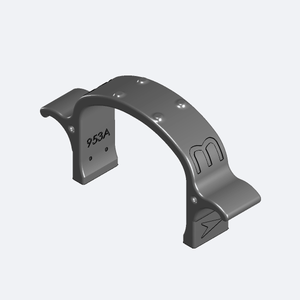

| Top Bracket | M10001370 |

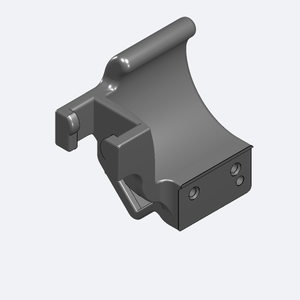

| Battery Clip 1 | M10000864 |

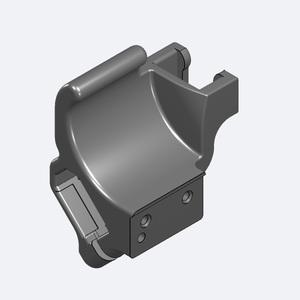

| Battery Clip 2 | M10000865 |
| GPS Mast Assembly | MRP-D0012-1-02 |
| Feet, V1–V3 (use with T-Motor) | M10000868 |
| Feet, V4 (powertrain & frame) | M10001460 |

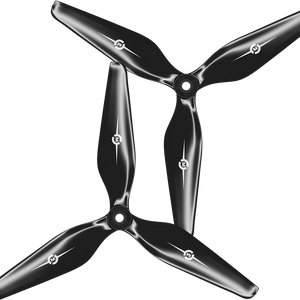

| Propellers (set of 4) | MRP-D0012-1-00 |
| Carbon Fiber Frame, V4 | M10001459 |
| Carbon Fiber Frame, V1–V3 (T-Motor version) | M10000929 |

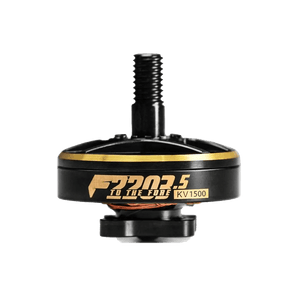

| Motor, V3 original (gold), 2203.5 1500kV | M10000073 |
| Motor, V4 (black), 2204 1500kV | M10001367 |
| Power Train, V4 frame with ModalAI motors | MSA-D0012-3-01-T |
| Hardware (nuts & bolts) | MHW-D0012-1 |
| Standoff, M2 knurled aluminium 10mm green | M10000583 |
| Standoff, M2 knurled aluminium 5mm green | M10000696 |
| Standoff, M2 knurled aluminium 4mm green | M10000695 |
| Replacement Plastics Kit | MRP-D0012-1-01 |
| Image Sensor Upgrade Kit (C28 to C29) | MRP-D0012-1-06 |
| Propeller Nuts | M10001405 |
Compatible Products
| Product | Compatible? |
|---|---|
| Starling 2 Max (D0012) | ✅ |
| Starling 2 (D0014) | ❌ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| HTS Code | 8807.30 |
| Country of Origin | United States |
| RoHS Compliant | Yes |
