VOXL ESC Mini 4-in-1 with Built-in Power Module
VOXL Mini 4-in-1 ESC
Product Description

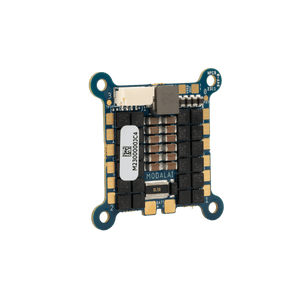

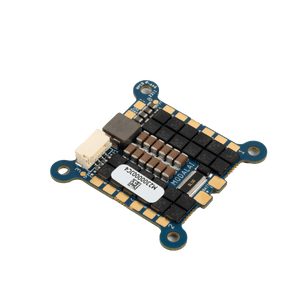

The VOXL Mini 4-in-1 ESC (M0129) is a lightweight electronic speed controller for small unmanned aircraft, assembled in the USA. It is NDAA-compliant and on the Blue UAS Framework list, where it is named VOXL 4IN1 ESC. It communicates with your flight controller over low-latency bi-directional UART at up to 2 Mbit/s, so the autopilot commands RPM directly and receives real-time RPM, temperature, voltage and current feedback.

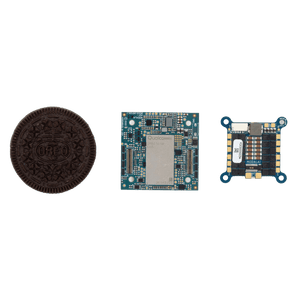

At 5.87 g it also serves as the vehicle's power module: the main regulated output powers a VOXL 2 or VOXL 2 Mini directly, removing a separate board from the stack. Closed-loop RPM control, regenerative braking and smooth sinusoidal spin-up come standard.

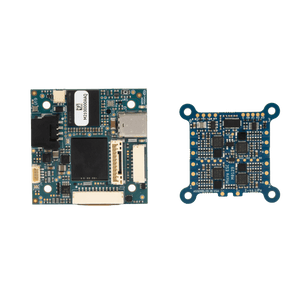

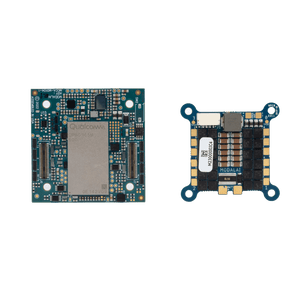

Select the correct version for your compute board: the 3.8 V version (M0129-3, M0129-63) powers VOXL 2 Mini; the 5 V version (M0129-5, M0129-65) powers VOXL 2.
This Mini ESC is sized for small aircraft — vehicles under 750 g, or under 500 g in FPV use. If your build is larger, choose by type rather than weight alone:
- FPV on 5-inch, 7-inch or 10-inch propellers — use the VOXL FPV Racing 4-in-1 ESC (M0138). 100 A peak and 40 A continuous per motor, with a switchable VTX power output.
Product Specifications
| Feature | Details |
|---|---|
| Compliance | NDAA-compliant, assembled in the USA; on the Blue UAS Framework list as “VOXL 4IN1 ESC” |
| Power Input | 2-4S Li-Po (6-18 V) — M0129-3 and M0129-5 variants, 4S LiHV supported 2-6S Li-Po (6-26 V) — M0129-63 and M0129-65 variants, 6S LiHV supported |
| Main Power Output | 3.8 V (M0129-3, M0129-63) or 5.0 V (M0129-5, M0129-65) @ 5 A — select the correct version |
| Auxiliary Power Output | 3.3 V or 5.0 V @ 500 mA (default 3.3 V, software-controlled) |
| Vehicle Weight | Designed for vehicles under 750 g (under 500 g in FPV use) |
| MCU | STM32F051K86 @ 48 MHz, 64 KB Flash |

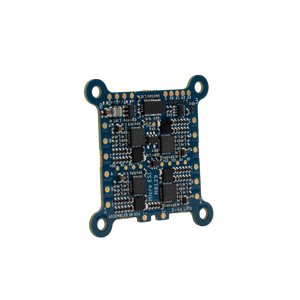

| MOSFET Driver | MP6531 |
| MOSFETs | CSD17575Q3 (N-channel) |
| Current Sensing | 0.5 mOhm shunt with INA186 (total current) |
| Temperature Sensing | Yes |
| ESD Protection | Yes, on UART and PWM I/O |
| Status LEDs | On-board |
| Control Interfaces | Dual bi-directional UART up to 2 Mbit/s (3.3 VDC logic, 5.0 V tolerant) PWM input (1-2 ms) and PWM output (50/200/400 Hz) via test points |
| Connectors | UART: 4-pin JST GH (BM04B-GHS-TBT) Main 3.8 V / 5.0 V output and motor outputs: solder pads |
| Dimensions | [pull L x W x H from the M0129 3D CAD] |
| Weight | 5.87 g (without wires) |
Software Features
- Closed-loop RPM control (commanded RPM), used by the PX4
voxl_escdriver - Open-loop control (commanded % power)
- Regenerative braking and smooth sinusoidal spin-up
- Real-time RPM, temperature, voltage and current feedback over UART
- Single Neopixel RGB LED output, up to 32 LEDs
- Audible tone generation through the motors
- PX4 integration supported in 1.12 and later
Technical Details
User Guide (VOXL ESC V2 Manual)
These closed-loop RPM control ESCs require tuning for your specific motor and propeller combination. Tuning tools are available in the voxl-esc tools repository.
What's Included
| MPN | Description | Contents |
|---|---|---|
| MDK-M0129-63-01 | Dev Kit, VOXL ESC Mini V2, 3.8 V, 6S, w/ cables | (1) MCCA-M0129-63 ESC, 3.8 V output Cables to connect to VOXL 2 Mini |
| MDK-M0129-65-01 | Dev Kit, VOXL ESC Mini V2, 5 V, 6S, w/ cables | (1) MCCA-M0129-65 ESC, 5.0 V output Cables to connect to VOXL 2 |
Additional Items Not Included
- Motors, propellers and battery
- XT30 battery connector and motor lead wire (power and motor outputs are solder pads)
- Compute board or flight controller
Compatible Products
| Product | Compatible? | Version to order |
|---|---|---|
| VOXL 2 Mini | ✅ powers it directly | 3.8 V (M0129-3 / -63) |
| VOXL 2 | ✅ powers it directly | 5 V (M0129-5 / -65) |
| Flight Core v2 | ✅ | Either, per your power rail |
| VOXL Flight | ✅ | Either |
| VOXL | ✅ | Either |
| Starling 2 / Starling 2 Max | ✅ factory-installed | — |
| Third-party PX4 (1.12+) and ArduPilot flight controllers | ✅ | Either |
| FPV builds on 5in, 7in or 10in propellers | ❌ | Use the VOXL FPV Racing 4-in-1 ESC (M0138) |
| Slow-flying vehicles up to 1500 g | ❌ | — |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31 |
| Country of Origin | USA |
| Radio Frequencies Used | None |
| RoHS Compliant | Yes |
