VOXL 2 USB3.0 / UART Expansion Adapter

$49.99
| /
Selected sku: MDK-M0151-1-00
description

M0151 USB 3.0 / UART Expansion Adapter

Product Description

The M0151 installs directly onto VOXL 2 via the legacy board-to-board connector (J3) and adds a USB 3.0 port plus an additional UART for talking to an external flight controller.

Note: this board cannot be combined with other daughter boards or modems that install onto the legacy or high-speed board-to-board connectors.

Product Specifications

Feature Details
USB 1x USB 3.0 connector
UART 1x UART connector
Host Interface VOXL 2 legacy board-to-board connector (J3)
Form Factor Micro
Country of Origin USA

Software Features

Technical Details

Datasheet

User Guide

M0151 Overview · External Flight Controller Guide

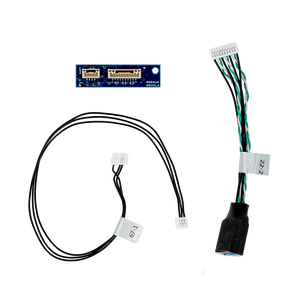

What's Included

MPN Description Contents
MDK-M0151-1-00 Board Only (1) MCCA-M0151-1 USB 3 / UART Expansion Adapter
MDK-M0151-1-01 Dev Kit (1) MCCA-M0151-1 USB 3 / UART Expansion Adapter
(1) MCBL-00011-1 VOXL Power Module Y cable
(1) MCBL-00022-1 USB 3 Type A female to 10-pos JST GH cable

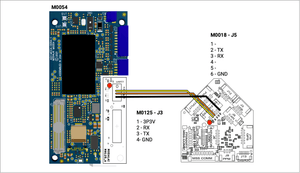

(1) MCBL-00059-1 UART cable, 4-pos JST GH to 4-pos JST GH

Additional Items Not Included

  • VOXL 2 compute board
  • External flight controller, if used

Compatible Products

Product Compatible?
VOXL 2 ✅ legacy board-to-board connector J3

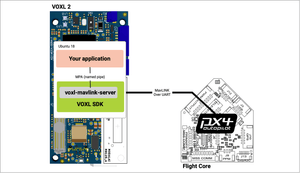

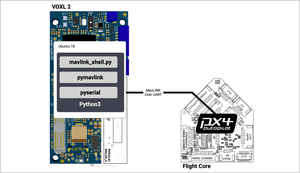

Flight Core v2 ✅ as the external flight controller over UART
MCBL-00022 USB3 cable ✅
Other daughter boards or modems on the legacy / high-speed connectors ❌ cannot be stacked
VOXL / VOXL Flight / Qualcomm Flight RB5 5G ❌

Requirements to Get Started

Intended for developers and technical users. Users should be familiar with embedded development to be comfortable on this platform. ADB must be installed on the host computer to interact with the device.

Export Information

Item Value
ECCN EAR99
Harmonized Tariff Schedule (HTS) Code 8542.31
Country of Origin USA
Radio Frequencies Used None
RoHS Compliant Yes
