VOXL 2 Ethernet and USB Hub Add-on
$259.99
| /
description

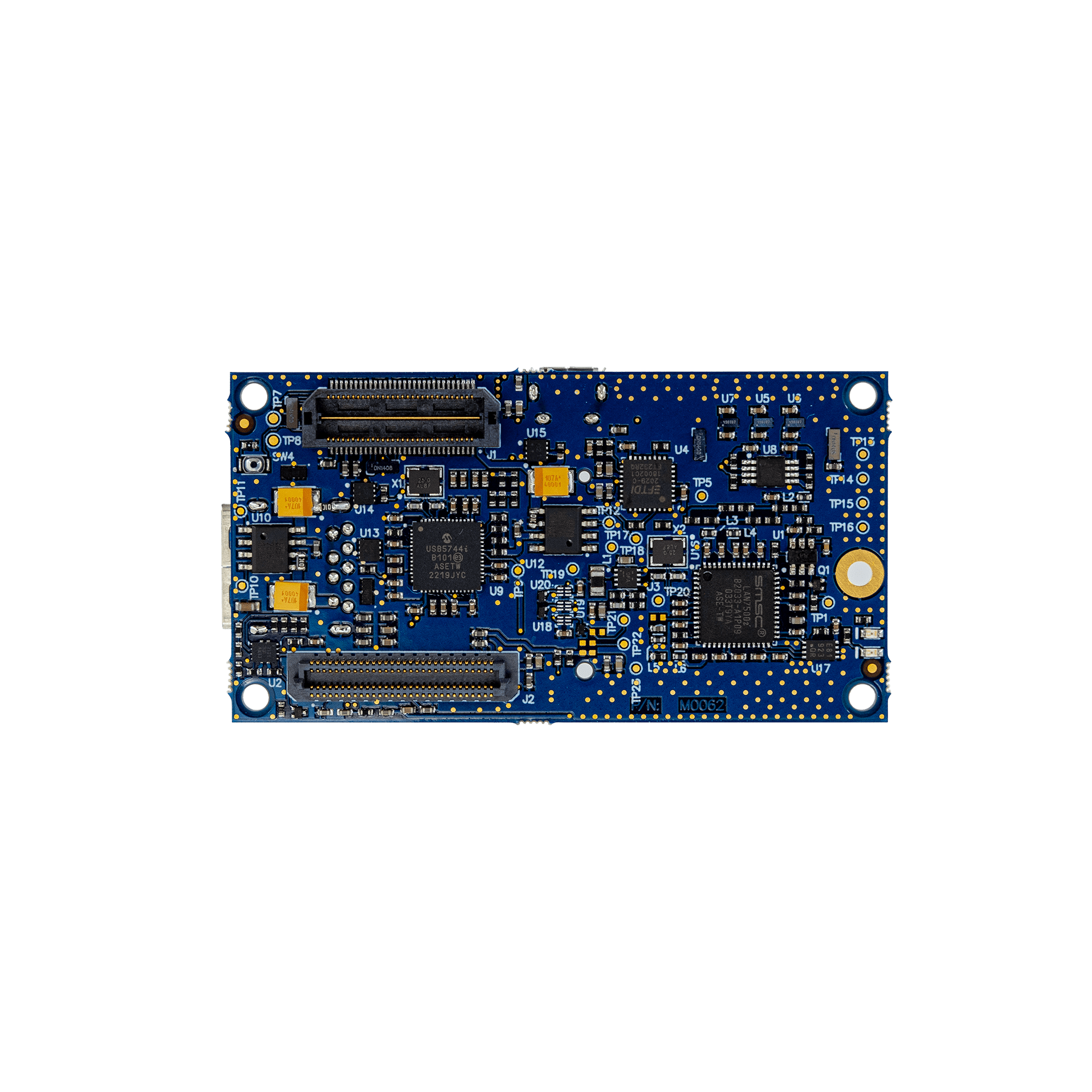

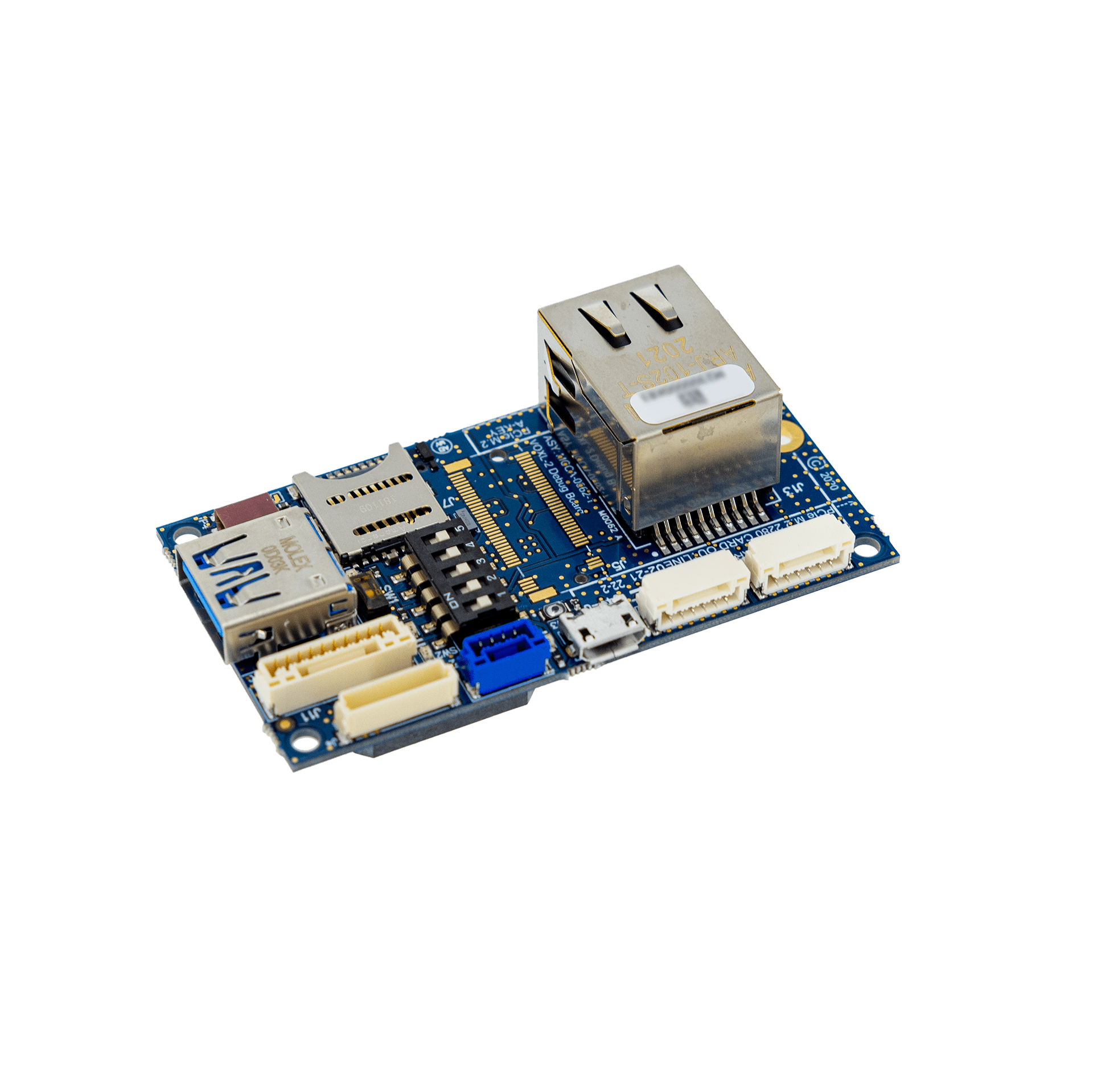

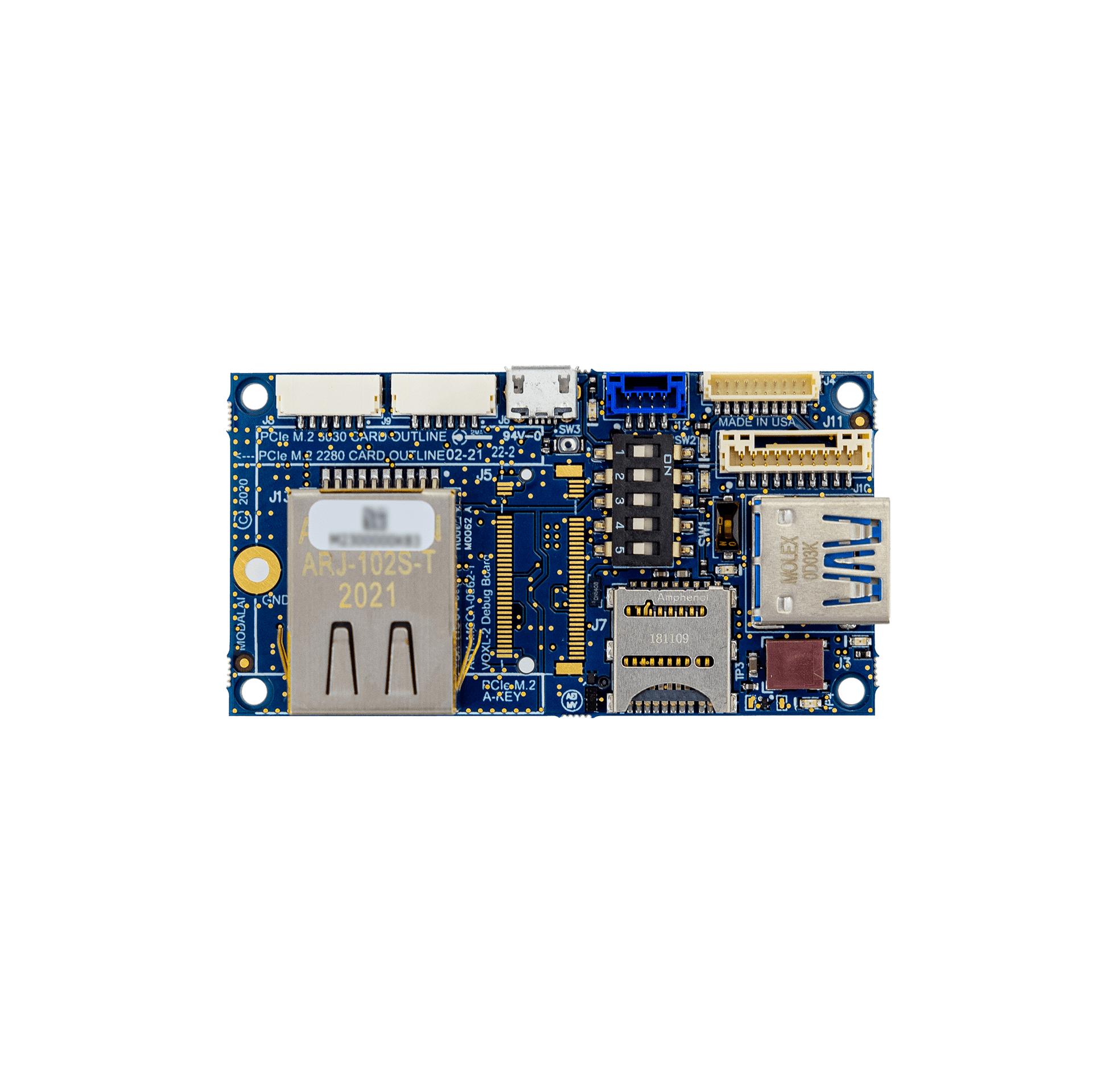

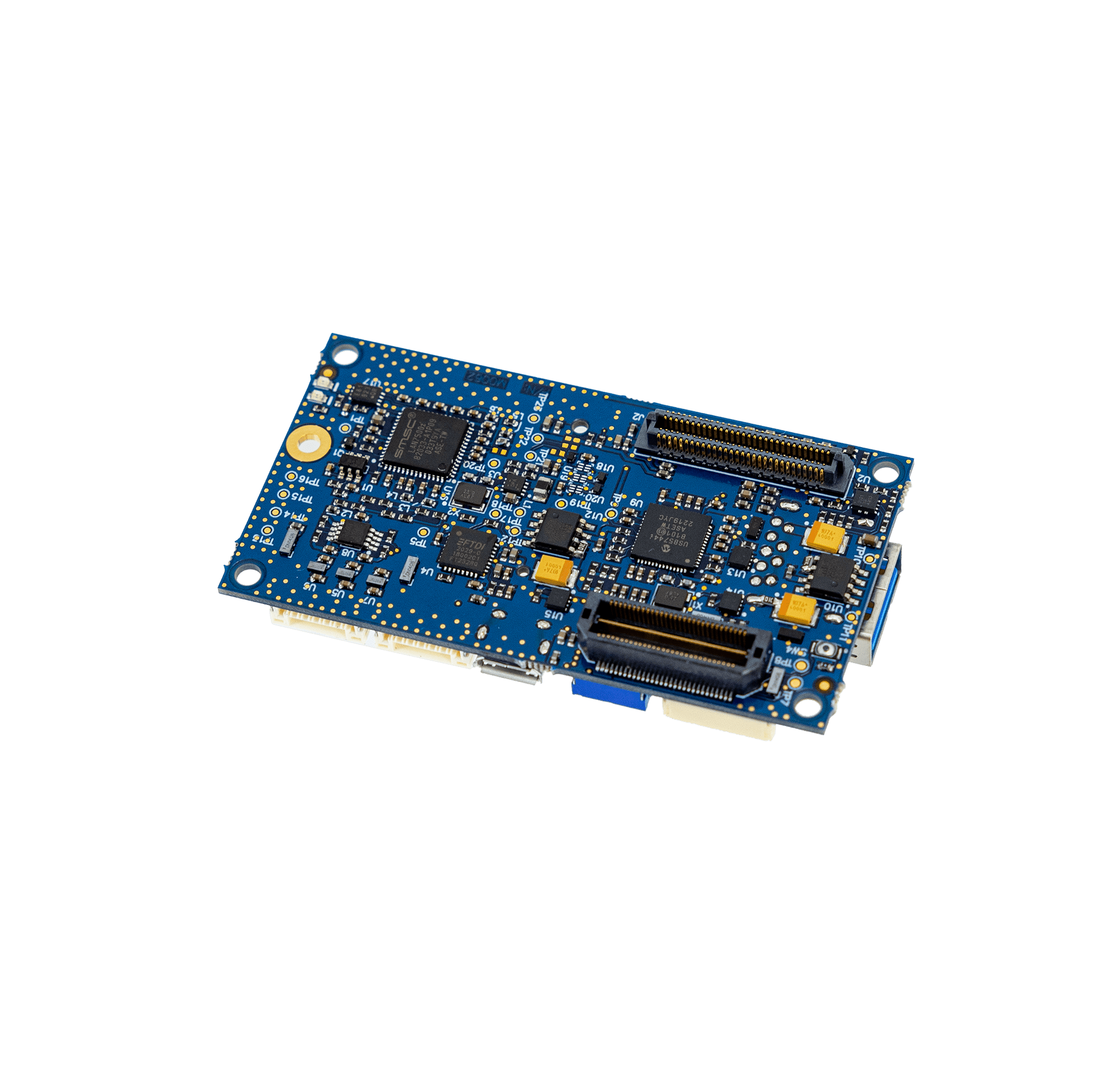

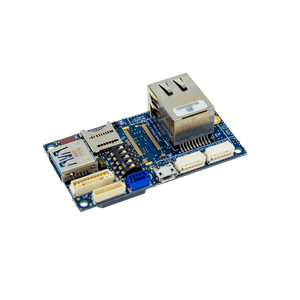

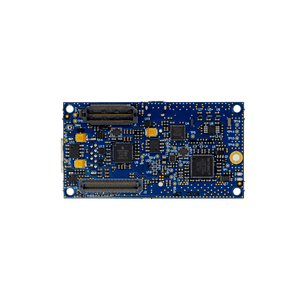

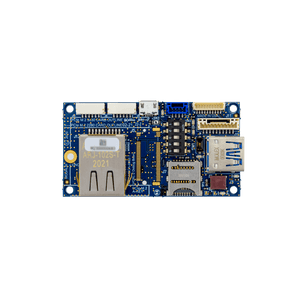

M0062 VOXL 2 Ethernet Expansion and USB Hub
Product Description
The M0062 is an Ethernet and USB hub breakout adapter for VOXL 2, adding wired networking and additional USB ports to the stack.

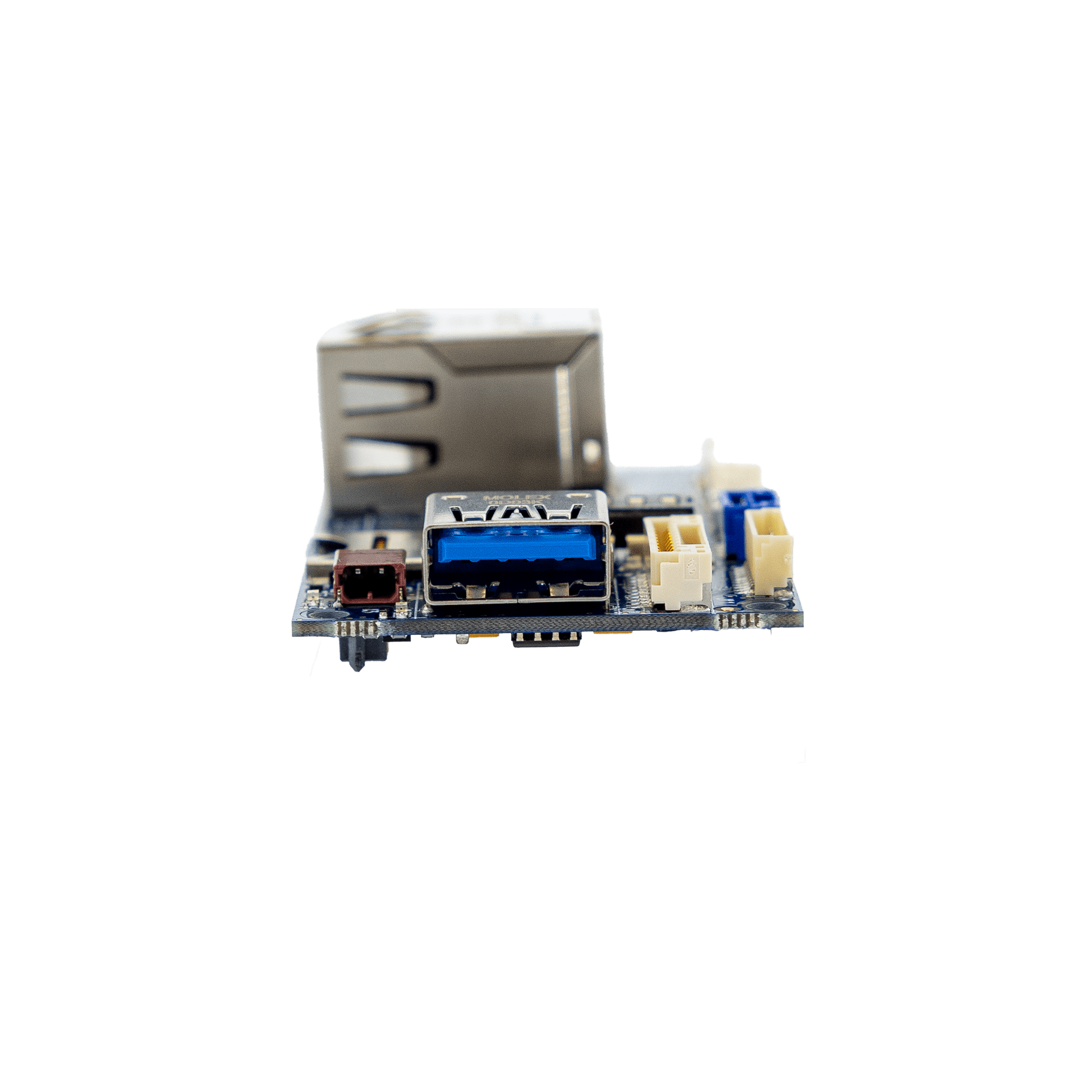

Known issue: the USB A connector J10 does not work consistently on this board. We are investigating. In the meantime use J11 — an MCBL-00022-2 cable converts J11 into a Type A port.
Product Specifications
| Feature | Details |
|---|---|
| Function | Ethernet expansion and USB hub for VOXL 2 |
| Networking | Wired Ethernet |
| USB | Hub ports — use J11 (see known issue above) |
| Country of Origin | USA |
Software Features
- Standard Linux networking on VOXL 2
- Useful for ADB over Ethernet and for high-bandwidth offload from the aircraft
Technical Details

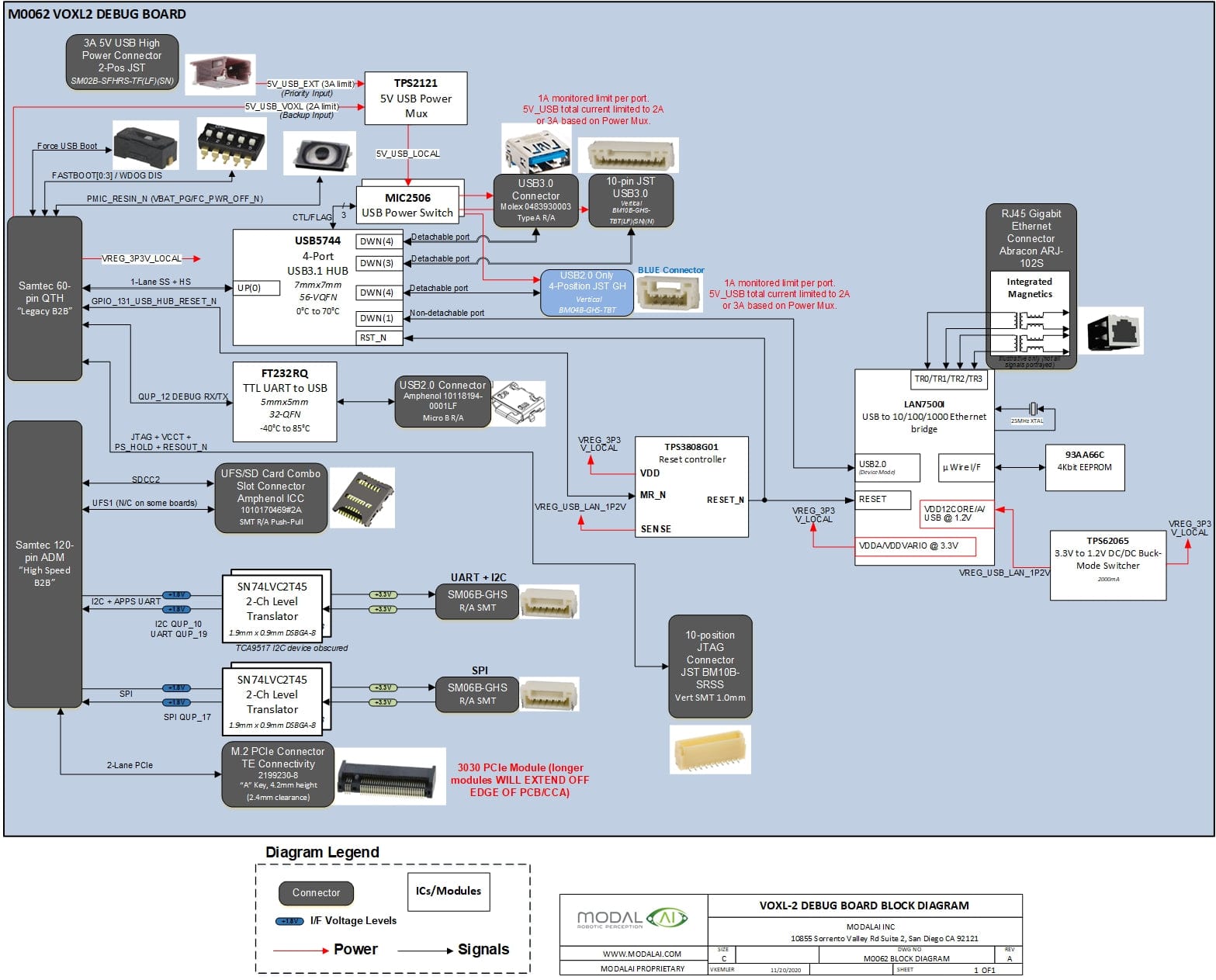

M0062 Overview · USB to Ethernet with VOXL
What's Included
| MPN | Description |
|---|---|
| MDK-M0062-2-00 | Board only kit |
Additional Items Not Included
- VOXL 2 compute board
- MCBL-00022-2 USB3 cable, if you need a Type A port on J11
- Ethernet cable
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL 2 | ✅ |
| MCBL-00022-2 | ✅ converts J11 to Type A |
| VOXL 2 Mini | ❌ |
| VOXL / VOXL Flight / Qualcomm Flight RB5 5G | ❌ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31 |
| Country of Origin | USA |
| Radio Frequencies Used | None |
| RoHS Compliant | Yes |
