Cable PWM Output (MCBL-00004)
$8.99
| /
description

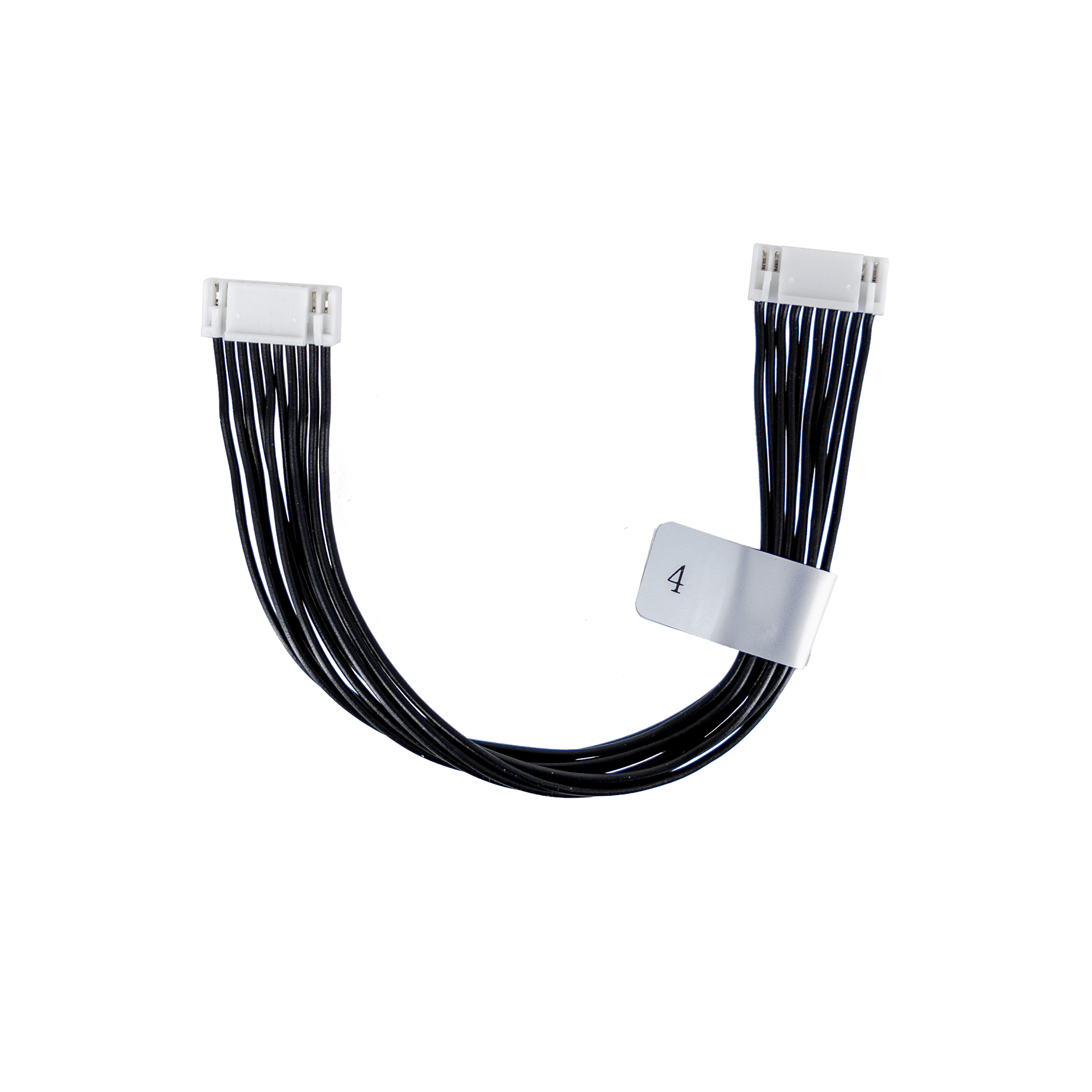

MCBL-00004 PWM Output Cable
Product Description
Breaks out the PWM outputs of VOXL Flight or Flight Core for connection to ESCs or servos. Also carries the eight PWM channels from VOXL 2 I/O (J1) to a PWM breakout board.
Product Specifications
| Feature | Details |
|---|---|
| Function | PWM output breakout |
| Channels | Up to 8, depending on host |
| Connector | 10-pin JST GH on the VOXL 2 I/O side (GHR-10V-S mating) |
Technical Details
User Guide (Cable User Guides)
What's Included
| MPN | Description |
|---|---|
| MCBL-00004 | PWM Output Cable |
Additional Items Not Included
- ESCs or servos
- PWM breakout board (MCCA-M0022), where required
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL Flight | ✅ |
| Flight Core | ✅ |
| VOXL 2 I/O (M0065) | ✅ J1 PWM output |
| PWM Breakout Board (M0022) | ✅ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0000 |
| Country of Origin | China |
| Radio Frequencies Used | None — passive cable assembly |
| RoHS Compliant | Yes |
