Cable 26-pin Micro-coax for Image Sensor Modules (MCBL-00084)
$49.99
| /
description

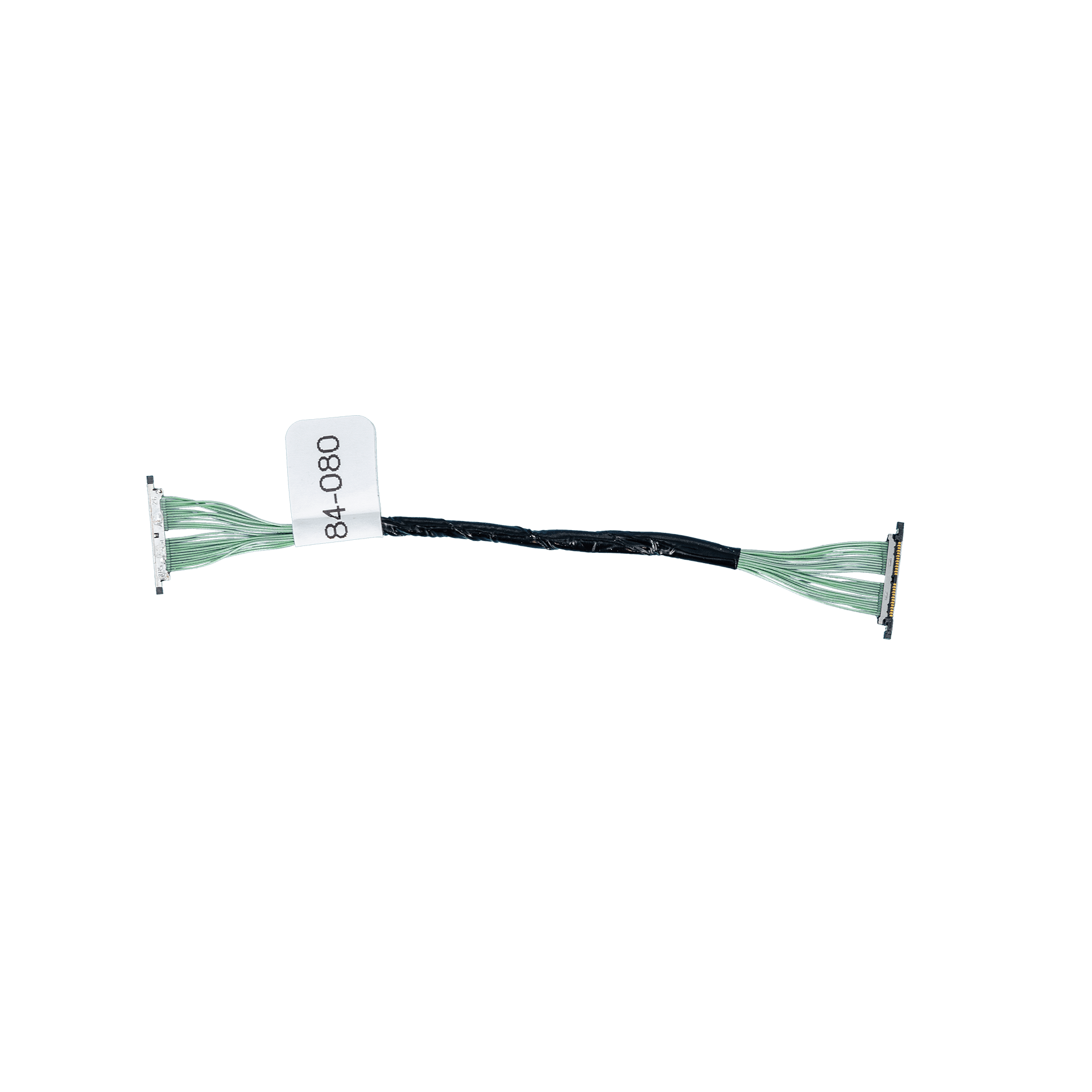

MCBL-00084 Micro-Coax Image Sensor Cable
Product Description
The micro-coax cable that connects ModalAI micro-coax image sensor modules — M0161, M0166 and M0186 — to a VOXL 2 camera adapter. Micro-coax is what lets the sensor sit anywhere on the airframe rather than close to the compute board.
Available in several lengths, including 80 mm, 140 mm and 180 mm.
Product Specifications
| Feature | Details |
|---|---|
| Function | Micro-coax image sensor to camera adapter |
| Supported Sensors | M0161 IMX412, M0166 AR0144, M0186 IMX664 |
| Lengths | 80 mm, 140 mm, 180 mm and others — see the datasheet |
| Adapters | M0173, M0155, M0188, M0195, M0172, M0181, M0194 |
Technical Details
User Guide (Cable User Guides)
What's Included
| MPN | Description |
|---|---|
| MCBL-00084-80 | Micro-coax cable, 80 mm |
| MCBL-00084-140 | Micro-coax cable, 140 mm |
| MCBL-00084-180 | Micro-coax cable, 180 mm |
Additional Items Not Included
- Image sensor module
- Camera adapter board
- VOXL 2 or VOXL 2 Mini compute board
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL 2 | ✅ requires M0173 or M0155 |
| VOXL 2 Mini | ✅ requires M0155, M0188 or M0195 |
| M0161 / M0166 / M0186 sensor modules | ✅ |
| VOXL / VOXL Flight | ❌ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8544.42 |
| Country of Origin | China |
| Radio Frequencies Used | None — passive cable assembly |
| RoHS Compliant | Yes |
