VOXL 2 ESC UART (4-Pin JST-GH format) Serial Port Cable to Host PC USB Port (FTDI) (MCBL-00091-1)
$19.99
| /
description

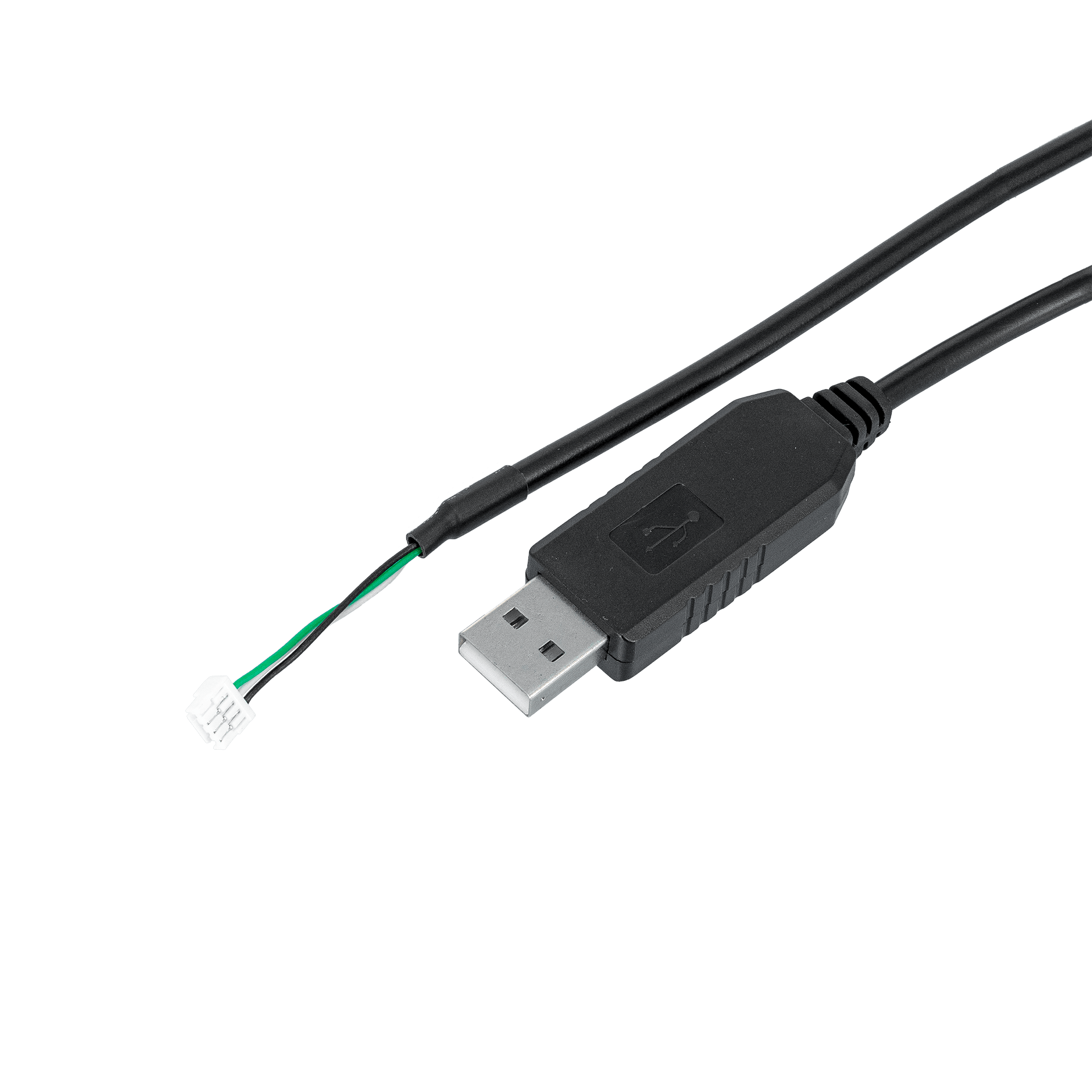

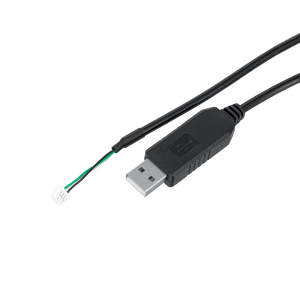

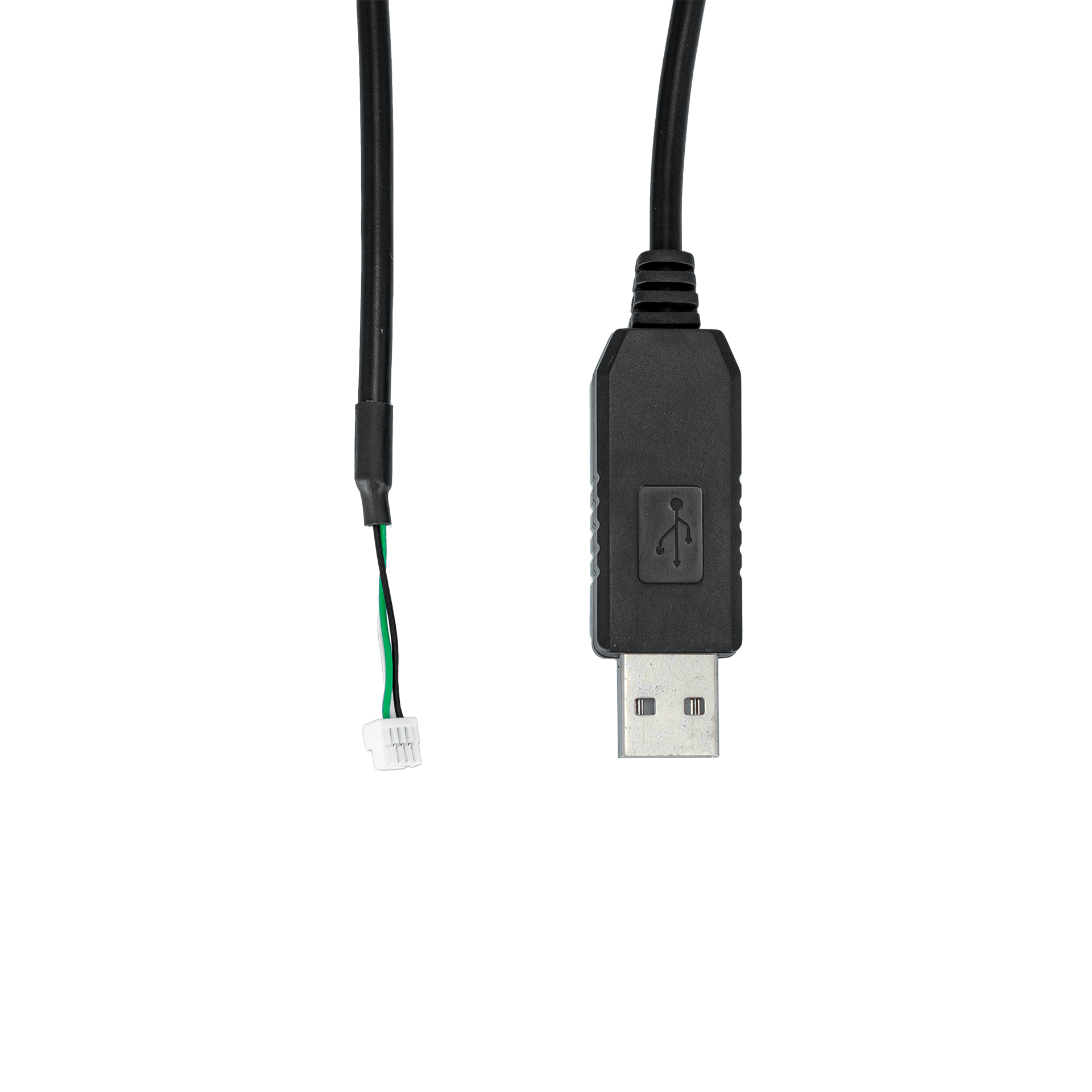

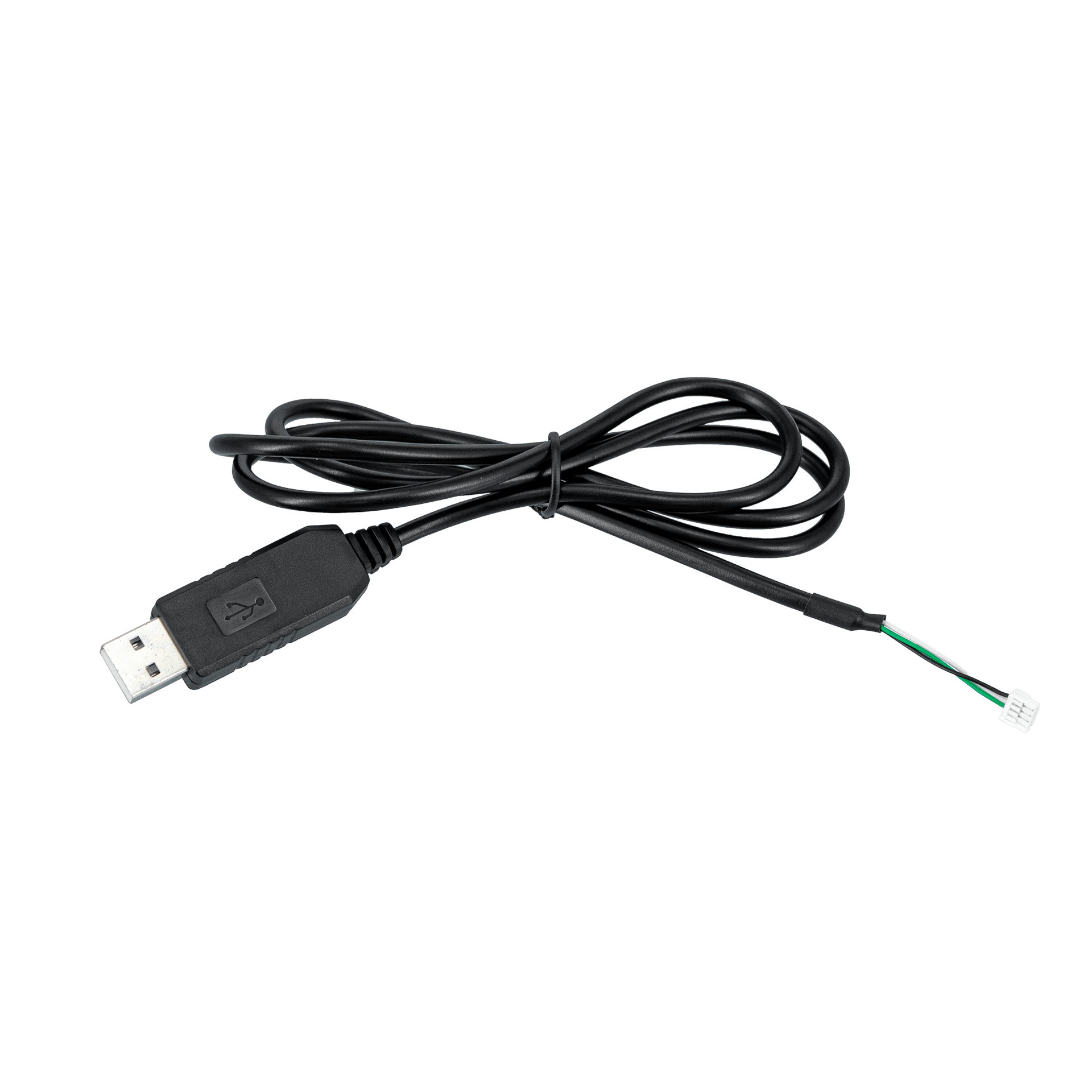

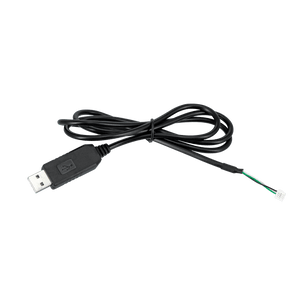

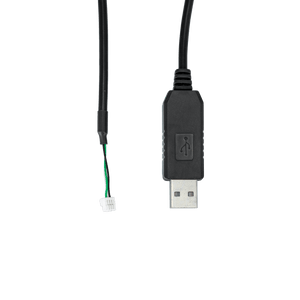

MCBL-00091 ESC UART to USB FTDI Cable
Product Description
Connects a ModalAI 3.3 V UART port in the 4-pin JST GH ESC format to a host PC USB port using an embedded FTDI adapter. Use it to talk to a VOXL ESC directly from a laptop for configuration, calibration and firmware updates.
Product Specifications
| Feature | Details |
|---|---|
| Function | 4-pin JST GH ESC UART to host USB |
| Adapter | Embedded FTDI USB-to-serial |
| Logic Level | 3.3 V |
Technical Details
User Guide (Cable User Guides)
What's Included
| MPN | Description |
|---|---|
| MCBL-00091-1 | Cable, ESC UART (4-pin JST GH) to USB, FTDI |
Additional Items Not Included
- Host PC
- VOXL ESC or other 3.3 V UART device
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL Mini 4-in-1 ESC (M0129) | ✅ |
| VOXL FPV Racing 4-in-1 ESC (M0138) | ✅ |
| ModalAI 4-pin JST SRSS debug UART ports | ❌ use MCBL-00090 |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0000 |
| Country of Origin | China |
| Radio Frequencies Used | None — passive cable assembly |
| RoHS Compliant | Yes |
