Microhard pDDL Carrier USB Dongle (MDK-M0048-2-01)
Microhard pDDL Carrier USB Dongle (MDK-M0048-2-01)
Product Description

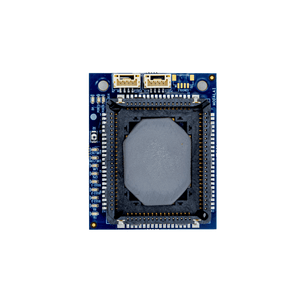

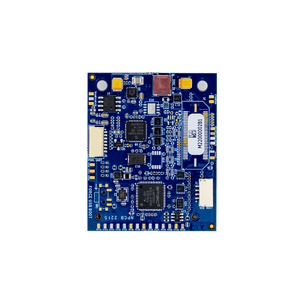

A stand-alone USB carrier for Microhard pDDL and pMDDL modem modules, used to put the ground end of a long-range, point-to-point drone data link on a laptop or tablet. Plug in the Microhard module of your choice, connect the dongle to a Linux PC or Android device over USB, and the host sees a standard network interface — no carrier board or vehicle required at the ground station.
The dongle presents a USB-to-Ethernet networking device and also acts as a USB hub, so it expands the host's USB access at the same time. The Microhard modem module is sold separately.

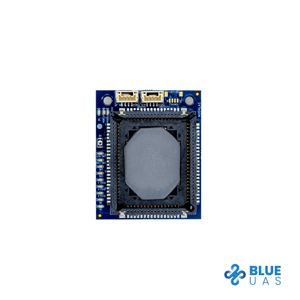

This dongle is on the Blue UAS Framework list.
Product Specifications
| Item | Value |
|---|---|
| Dimensions | 49 mm x 40 mm |
| Weight | 12 g |
| Input | External 5 VDC |
| Power consumption | 315 mA at 5 V baseline, up to 3700 mA depending on configuration and attached peripherals |
| USB2 host ports | 4-position JST GH vertical (BM04B-GHS-TBT), supporting up to two USB clients |
| Host connection | Micro-USB, via the MCBL-00010 stub cable |
| Antenna connector | UFL-R-SMT-110 |
| Host interface presented | USB-to-Ethernet network device, plus USB hub |
Technical Details
The host communicates with the Microhard modem over a network interface rather than a serial port, so the modem is configured and addressed like any other networked device.
What's Included
| MPN | Description | Contents |
|---|---|---|
| MDK-M0048-2-01 | Microhard pDDL Carrier USB Dongle, Dev Kit | MCCA-M0048-2-T — Microhard carrier, stand-alone, LAN7500, USB hub MRF-M0019-1 — antenna kit, (2) Molex 47950-0011 MCBL-00010-1 — 4-pin JST to Micro USB Female cable, connects the unit to a host computer MCBL-00017-1 — 5 V / 4 A DC cable, connects to an external 5 VDC supply M10000058 — Microhard pDDL socket lid |
Additional Items Not Included
- A Microhard modem module, such as the pMDDL2450
- An external 5 VDC power supply
Optional Cables for the USB Hub
Compatible Products
| Product | Compatible? | Notes |
|---|---|---|
| Microhard pMDDL2450 | ✅ | 2.4 GHz MIMO, sold separately |
| Microhard pMDDL2350 | ✅ | 2.3 GHz MIMO |
| Microhard pDDL1800 | ✅ | 1800 MHz |
| Linux PC or Android device | ✅ | Over USB, via the included MCBL-00010-1 |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 without modem, 5A992.c with modem |
| Harmonized Tariff Schedule (HTS) Code | 8542.31 |
| Country of Origin | USA |
| Radio Frequencies Used | None without a Microhard modem installed |
| RoHS Compliant | Yes |
