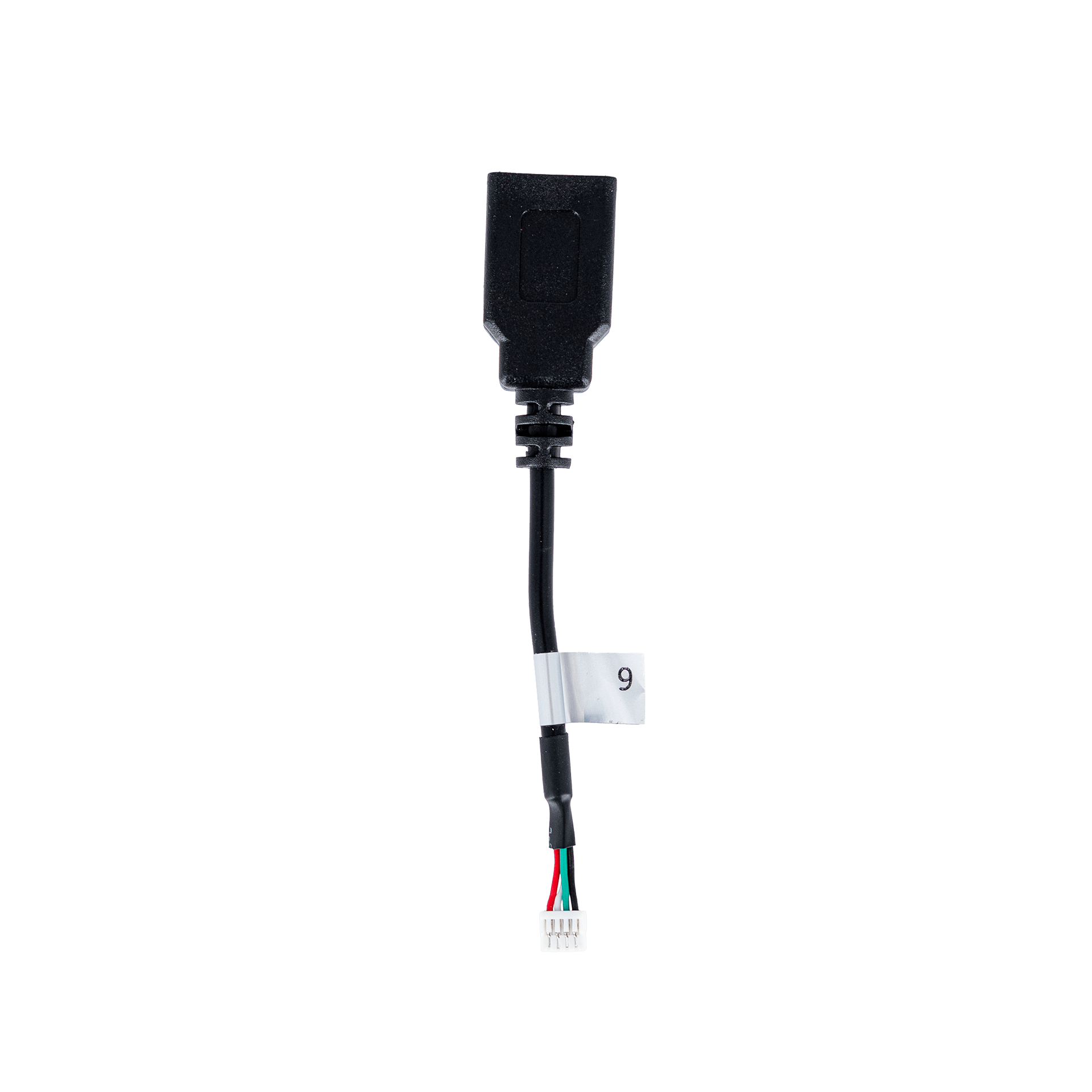

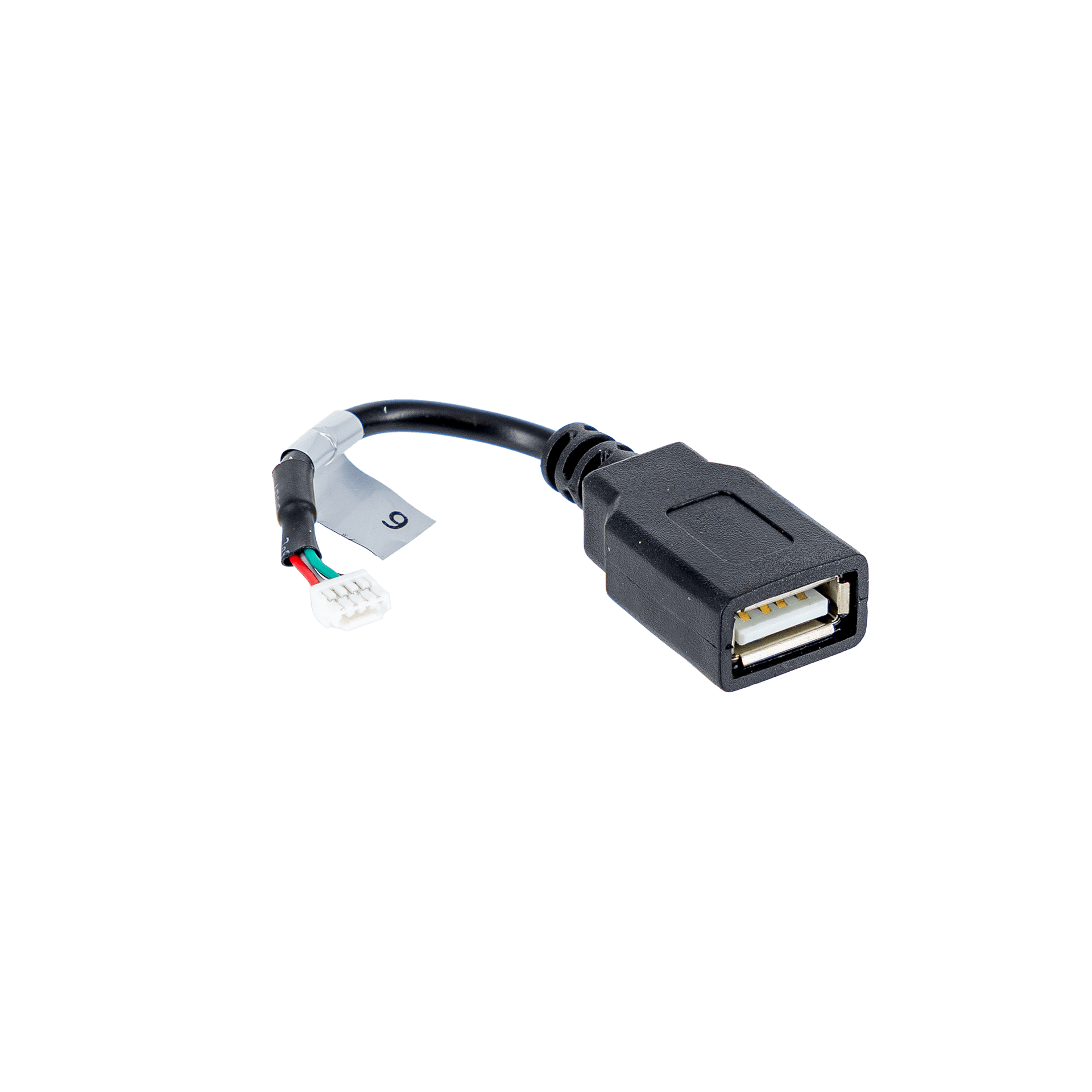

Cable - Host, 4-pin JST to USB 2.0 Type A Female (MCBL-00009-1)
$8.99
| /
description
MCBL-00009 4-Pin JST to USB 2.0 Type A Cable
Product Description
Connects VOXL or VOXL Flight to USB peripherals, breaking out a 4-pin JST USB 2.0 port to a standard Type A female receptacle.
A longer 150 mm version is available as MCBL-00041.
Product Specifications
| Feature | Details |
|---|---|
| Connectors | 4-pin JST to USB 2.0 Type A female receptacle |
| Standard | USB 2.0 |
Technical Details
User Guide (Cable User Guides)
What's Included
| MPN | Description |
|---|---|
| MCBL-00009-1 | Cable, 4-pin JST to USB 2.0 Type A Female |
Additional Items Not Included
- USB peripheral
- Host compute board
Compatible Products
| Product | Compatible? |
|---|---|
| VOXL | ✅ |
| VOXL Flight | ✅ |
| ModalAI 4-pin JST USB 2.0 host ports | ✅ |
Export Information
| Item | Value |
|---|---|
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0000 |
| Country of Origin | China |
| Radio Frequencies Used | None — passive cable assembly |
| RoHS Compliant | Yes |
